S422
 Pentium III Server Blade







Call Us:
(800) 829-0550


TECHNICAL SPECIFICATIONS: S422

Request for Quotation
 Download PDF Brochure
 Back to SP System Overview

Call Us!
 800/829-0550

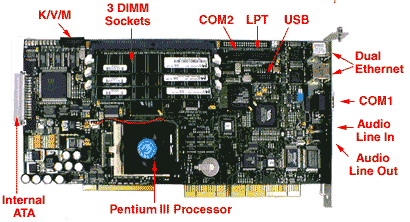

Single Intel Pentium III processor-based blade with VIA chipset supporting 133MHz front-side bus.
For projects requiring high server density and Pentium III performance with 133MHz front-side bus and memory expansion to 1.5GB, Cubix offers the S422 server blade.

Eight S422 blades can be hosted in a single Density D402 chassis, with support for one internal ATA drive and one full length PCI expansion slot available for each blade.

For assistance in creating a configuration that best fits your project needs, submit a configuration request or call a Cubix representative

IntelŪ Processor  Supports Intel PentiumŪ III 866MHz or 1GHz processor
Front-Side Bus  133MHz bus
L2 Cache  256KB Full Speed w/Pentium III
System Chip Set VIA Apollo Pro 133
ECC Memory
  • 128MB ECC SDRAM (base configuration)
  • Speed: PC-133MHz
  • Type: 72 Bits ECC Unbuffered or Registered (cannot be mixed type)
  • Slots: 3
  • Maximum: 3 x 512MB DIMMS
Peripheral Bus  PCI (support for one expansion slot)
System BIOS  AMI BIOS
Super Serial I/O
  • SMC 37M12
  • Com 1 on end bracket
  • Com 2 on header (Ext. break out optional part #DSPCOM2)
  • UART 16C550 Compatible 230Mbps maximum
Universal Serial Bus on header (requires top hat module part# USB-DFF)
Parallel Port LPT 1 available on header (Ext. break out optional part # LPT-DFF)
Ethernet Ports
  • Dual Integrated RJ-45 10/100 Base TX
  • Intel 82559 Controllers
Video VGA Support
  • S3 Savage 4 chip set
  • 8MB Video RAM
Video/Keyboard/Mouse  Board header (individual ext. break out optional part #DVKMB3)
ATA Support Supports up to 80GB Ultra ATA hard drive
Power  +5VDC 7.6A Max; +12VDC 0.25AMax; -12VDC 0.05A Max; 41.6W Max Power – Does not include IDE hard drive power
Warranty 3 Years Parts and Labor – return to manufacturer
