S420
 Pentium III Server Blade







Call Us:
(800) 829-0550


TECHNICAL SPECIFICATIONS: S420

Request for Quotation
 Download PDF Brochure
 Back to SP System Overview

Call Us!
 800/829-0550

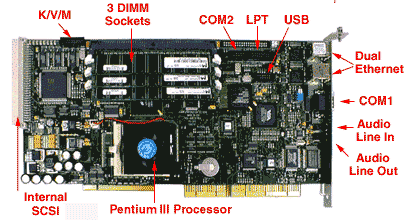

Single Intel Pentium III processor-based blade with VIA chipset supporting 133MHz front-side bus.
For projects requiring high server density and Pentium III performance with 133MHz front-side bus and memory expansion to 1.5GB, Cubix offers the S420 blade server.

Eight S420 blades can be hosted in a single Density D402 chassis, with support for one internal SCSI drive and one full length PCI expansion slot available for each blade. Projects requiring more than one internal SCSI drive are better suited to the D401 chassis which hosts four S420 servers and provides support for three internal SCSI hard drives for each server.

For assistance in creating a configuration that best fits your project needs, submit a configuration request or call a Cubix representative

IntelŪ Processor  Supports Intel PentiumŪ III 866MHz or 1GHz processor
Front-Side Bus  133MHz bus
L2 Cache  256KB Full Speed w/Pentium III
System Chip Set VIA Apollo Pro 133
ECC Memory
  • 128MB ECC SDRAM (base configuration)
  • Speed: PC-133MHz
  • Type: 72 Bits ECC Unbuffered or Registered (cannot be mixed type)
  • Slots: 3
  • Maximum: 3 x 512MB DIMMS
Peripheral Bus  PCI (support for one expansion slot)
System BIOS  AMI BIOS
Super Serial I/O
  • SMC 37M12
  • Com 1 on end bracket
  • Com 2 on header (Ext. break out optional part #DSPCOM2)
  • UART 16C550 Compatible 230Mbps maximum
Universal Serial Bus on header (requires top hat module part# USB-DFF)
Parallel Port LPT 1 available on header (Ext. break out optional part # LPT-DFF)
Ethernet Ports
  • Dual Integrated RJ-45 10/100 Base TX
  • Intel 82559 Controllers
Video VGA Support
  • S3 Savage 4 chip set
  • 8MB Video RAM
Video/Keyboard/Mouse  Board header (individual ext. break out optional part #DVKMB3)
SCSI Support Connection:
  • Internal support only
  • Type:  Wide Ultra2 LVD (80MB max. transfer rate)

Single ended (40MB max. transfer rate)
Chipset:  Symbios 53C895

Power  +5VDC 7.6A Max; +12VDC 0.25AMax; -12VDC 0.05A Max; 41.6W Max Power – Does not include IDE hard drive power
Warranty 3 Years Parts and Labor – return to manufacturer
