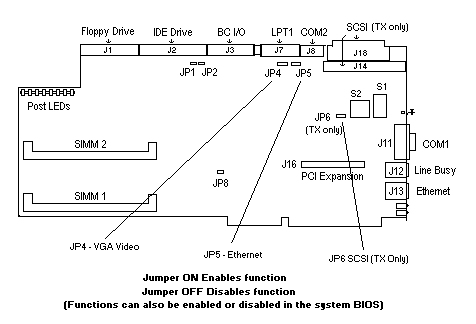

Enabling and
Disabling Features
on the BC 5xxxTX Board
| JP1 - CPU Speed | factory set | Do not change |
| JP2 - CPU Speed | factory set | Do not change |
| JP8 - Flash Write | On = Enabled | Off = Protect |
Take me to the TX boards Quick Reference Guide
Take me to the TX boards Manual
