CP 6xxx Series
Plug-in Computers
Overview
CP 6xxx Series plug-in computers with Celeron processors plug into backplanes that are divided into independent groups, allowing the installation of up to eight computers in a single Cubix Density System.

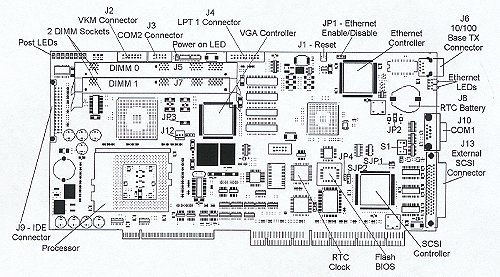

 CP 6xxx Series Board (shown with optional external SCSI) |
 |
Once installed in an Cubix Density System, each CP 6xxx Series board becomes an independent computer. The System multiplexor allows all CP Series computers in a system (or multiple systems) to share a single floppy disk drive, monitor, keyboard and mouse.
CP Series computers include on-board video, two serial
ports, one parallel port, keyboard and mouse support, memory, floppy and IDE hard drive
support. Also included is an integrated Ethernet controller with a 10/100 Base-T
connector, and an Ultra Fast/Wide SCSI interface.
Available Information |
| Quick Reference Guide | SCSI Adapter Information |
| DIMM Memory Configuration | File Download Page |
| Ethernet Adapter Information | Video Adapter Information |
| About the Cubix Density System |
|
