Procom 55SX Riser@5108.ADF - Procom
Technology, Inc. PIRA 55
Procom

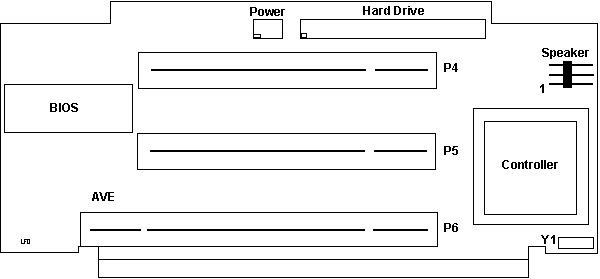

55SX Pira Riser
Power
Header Pinout
ADF
Sections
MC Procom Riser
Original image and Power pinout courtesy of Jerry Hogervorst
This puppy has an
IDE controller built-in.
Power Header
(P3)
Top of card
AdapterID
5108 Procom Technology, Inc. PIRA 55
Adapter I/O Address Range
I/O port address range of the adapter.
<"1030h-1047h">, 3030h-3047h,
5030h-5047h, 7030h-7047h
Adapter Base Memory Address
EPROM base memory address of the adapter.
<"C8000h"
(C800-C9FF)>, CA00 (CA00-CBFF), CC00 (CC00-CDFF), CE000h
(CE00-CFFF), D800 (D800-D9FF), DA00 (DA00-DBFF), DC00 (DC00-DDFF), DE00
(DE00-DFFF)
IRQ Level
Interrupt
Request Level for the adapter.
<"
IRQ 14">, 15, 10, 11
DMA Arbitration Level (Commented Out)
The PIRA 55 uses the
host DMA to transfer data.
<"Level 5">, 6, 7, 0, 1, 3, 4
Fairness On/Off (Commented Out)
The PIRA 55 adapter supports the Micro Channel Fairness
feature. When <ON>, the PIRA 55 will not participate in the
next arbitration after the bus has been requested by another
peripheral. When <OFF>, the PIRA 55 will participate in all
arbitrations.
<
"Fairness ON ">, Fairness OFF
