Vertical : 1V/div
Horizontal 2uS/div
Vertical : 1V/div
Horizontal 2uS/div
The SG3524 controller
|

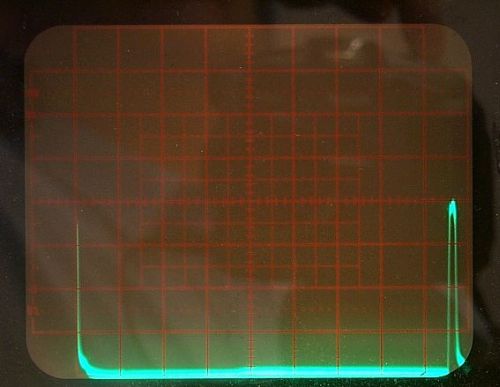

Signal on pin 7
Vertical : 1V/div Horizontal 2uS/div |
|

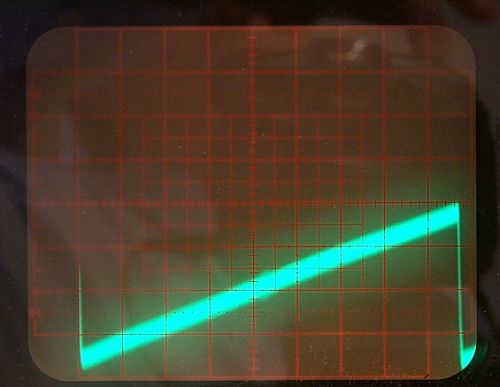

Signal on pin 3
Vertical : 1V/div Horizontal 2uS/div
|
|

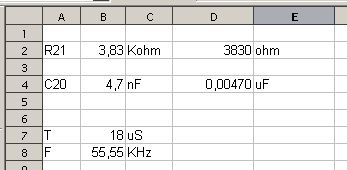

The working frequency of the SG3524 depend from R21 and C20 |
|

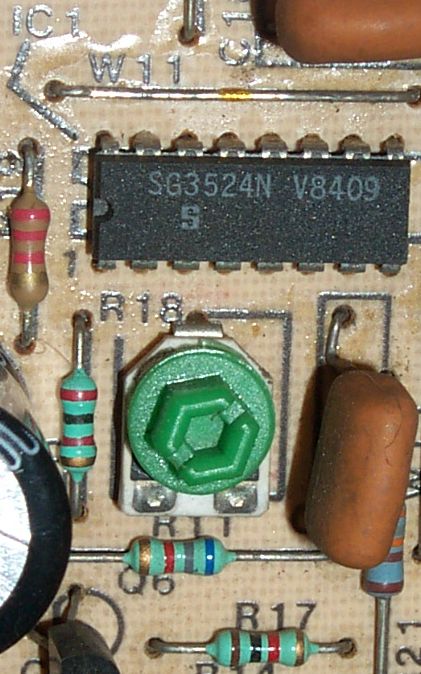

The trimmer R18 adjust the output voltage. Please note that the regulation is done only on the +5 and +12 references. |
