Parti che compongono il netserver LH3

HP 5183-2409 NETSERVER LH3 CONTROL PANEL BOARD

Alimentatore 0950-2816 5064-6603 5064-6604

Cestello 0950-2818

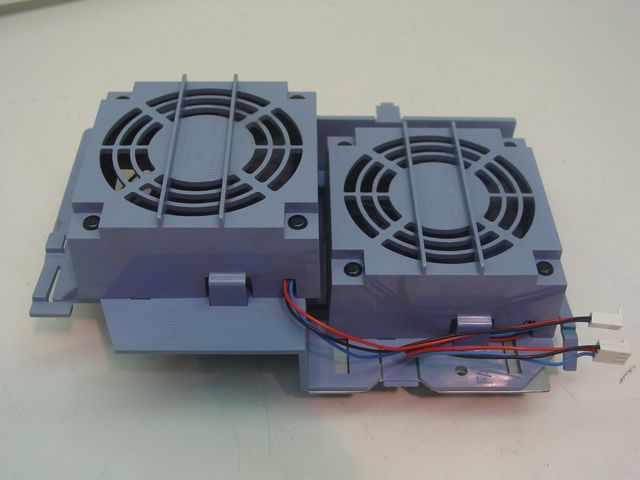

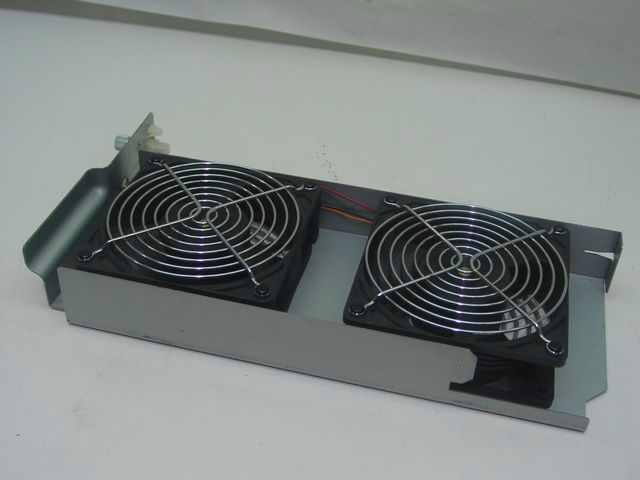

Gruppo ventole alimentatore




Part numbers

5002-4825

Ventole schede




Part numbers

5041-5352

D5041-5352

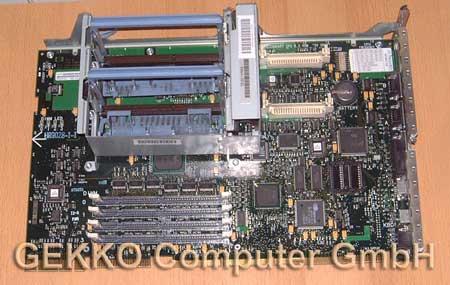

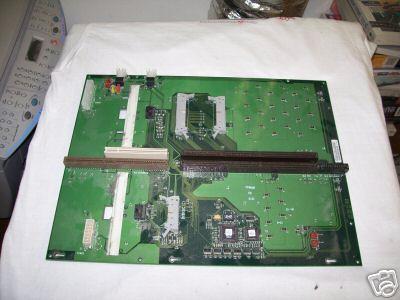

HP NETSERVER LH3 MOTHERBOARD



Part numbers

D4998-68001

D4998-68002

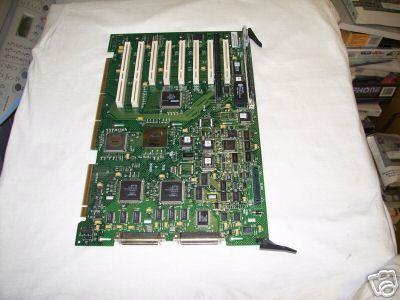

HP Netserver LH3 I/O Board




Part numbers

D5000-69001

D5000-63001

5064-1996

5183-2481

HP NETSERVER LH3 POWER MANAGEMENT BOARD




Part numbers

5064-1997





HP D5000-60001 NETSERVER LH3 SYSTEM BOARD

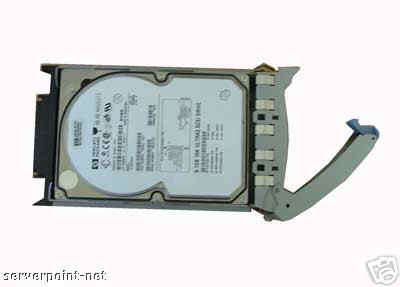

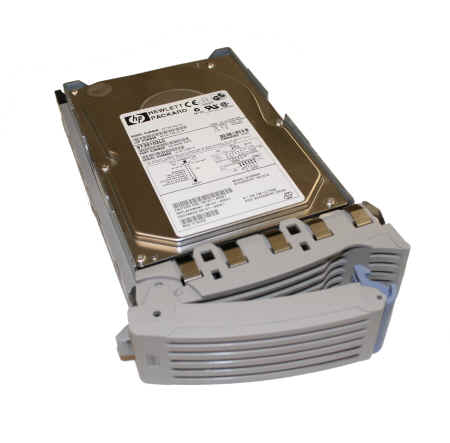

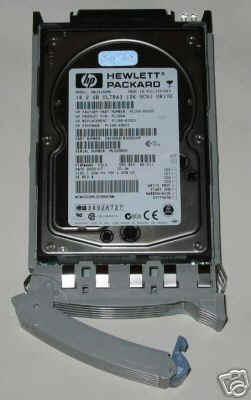

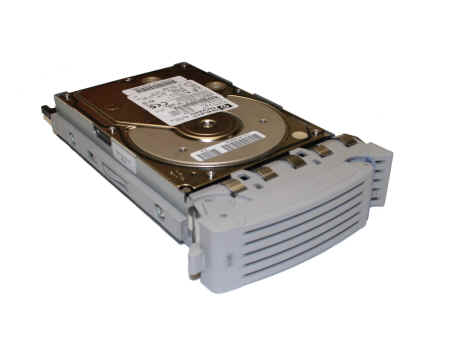

Sottosistema dischi

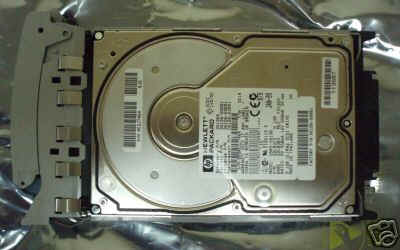

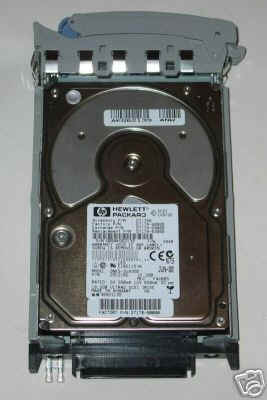

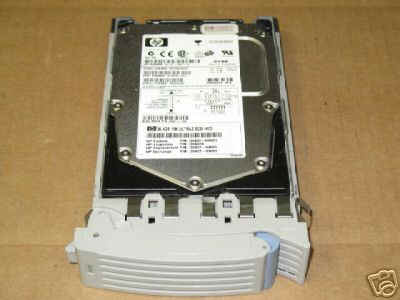

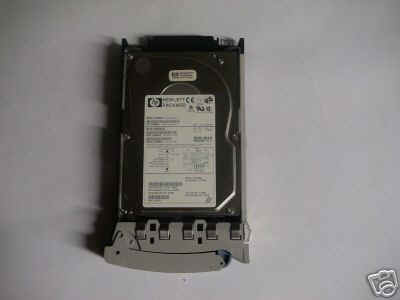

HP Product Number Description (SCSI Hot Swap)

D6106A

9.1GB 7200RPM Hot Swap Wide Ultra2 LP (1")  SCSI Disk Module for HP NetServer LH3/3r, LH4/4r, LPr, RS/12 and LXr 8000.
D6107A 9.1GB 10K RPM Hot Swap Wide Ultra2 LP (1")  SCSI Disk Module for HP NetServer LH3/3r, LH4/4r, LPr, RS/12 and LXr 8000.

D6108A

18.2GB 7200RPM Hot Swap Wide Ultra2 HH (1.6")  SCSI Disk Module for HP NetServer LH3/3r, LH4/4r, and RS/12.

D7174A

18.2GB 7200RPM Hot Swap Wide Ultra2 LP (1")  SCSI Disk Module for HP NetServer LH3/3r, LH4/4r, LPr, RS/12 and LXr 8000.

D7175A

18.2GB 10K RPM Hot Swap Wide Ultra2 LP (1")  SCSI Disk Module for HP NetServer LH3/3r, LH4/4r, LPr, LXr 8000, and RS/12.
D8210A 36.4GB 10K RPM Hot Swap Wide Ultra2 LP (1.6")  SCSI Disk Module for HP NetServer LH 3, LH 3r, LH 4, LH 4r, RS/12 and RS/12 FC.

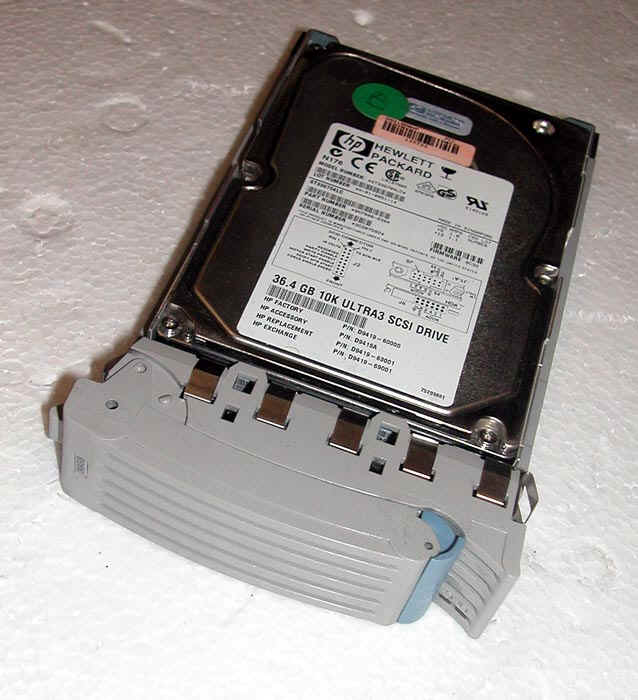

D9419A
 Available OnLine Special		 36.4GB 10K RPM Hot Swap Wide Ultra3 LP (1")  SCSI Disk Module for HP NetServer LC2000/r,LPr,LH3/r,LH3000/r,LH4/r,LH6000, /r,LT6000r,LXr8000,LXr8500, and RS12.

D9420A
 Available OnLine Special

73.4GB 10K RPM Hot Swap Wide Ultra3 HH (1.6")  SCSI Disk Module for HP NetServer LH3, LH3r, LH3000, LH3000r, LH4, LH4r, and RS12.
D9421A 18.2GB 15K RPM Hot Swap Wide Ultra3 LP (1")  SCSI Disk Module for HP NetServer LPr, LH3/r, LH4/r, LH6000/r, LT6000/r, LXr8000, LXr8500, and RS/12.
D9422A 36.4GB 15K RPM Hot Swap Wide Ultra3 LP (1")  SCSI Disk Module for HP NetServer LC2000, LPr, LH3000, LLH4, LH6000, LT6000r, LXr8500 and RS/12FC.

P1166A

18.2GB 10K RPM Hot Swap Wide Ultra3 LP (1")  SCSI Disk Module for HP NetServer LC2000/r,LPr,LH3/r,LH3000/r,LH4/r,LH6000, /r,LT6000r,LXr8000,LXr8500, and RS12.
P1168A
 		 9.1GB 10K RPM Hot Swap Wide Ultra3 LP (1")  SCSI Disk Module for HP NetServer LC2000/r,LPr,LH3/r,LH3000/r,LH4/r,LH6000, /r,LT6000r,LXr8000,LXr8500,RS12.

P1216A

18.2GB 7200RPM Hot Swap Wide Ultra3 LP (1")  SCSI Disk Module for HP NetServer LC2000/r,LPr,LH3/r,LH3000/r,LH4/r,LH6000, /r,LT6000r,LXr8000,LXr8500, and RS12.

P1217A

9.1GB 7200RPM Hot Swap Wide Ultra3 LP (1")  SCSI Disk Module for HP NetServer LC2000/r,LPr,LH3/r,LH3000/r,LH4/r,LH6000, /r,LT6000r,LXr8000,LXr8500, andRS12.

P3577A

73.4GB 10K RPM Hot Swap Wide Ultra3 LP (1")  SCSI Disk Module for HP NetServer E800, LC200, LH3, LH3000, LH4, LH6000, LT6000r, LPr, LXr8500 and RS/12.

P3578A

73.4GB 10K RPM Hot Swap Wide Ultra3 LP (1")  SCSI Disk Module for HP NetServer E800, LC200, LH3, LH3000, LH4, LH6000, LT6000r, LPr, LXr8500 and RS/12.

P3579A

73.4GB 10K RPM Hot Swap Wide Ultra3 LP (1")  SCSI Disk Module for HP NetServer E800, LC200, LH3, LH3000, LH4, LH6000, LT6000r, LPr, LXr8500 and RS/12.

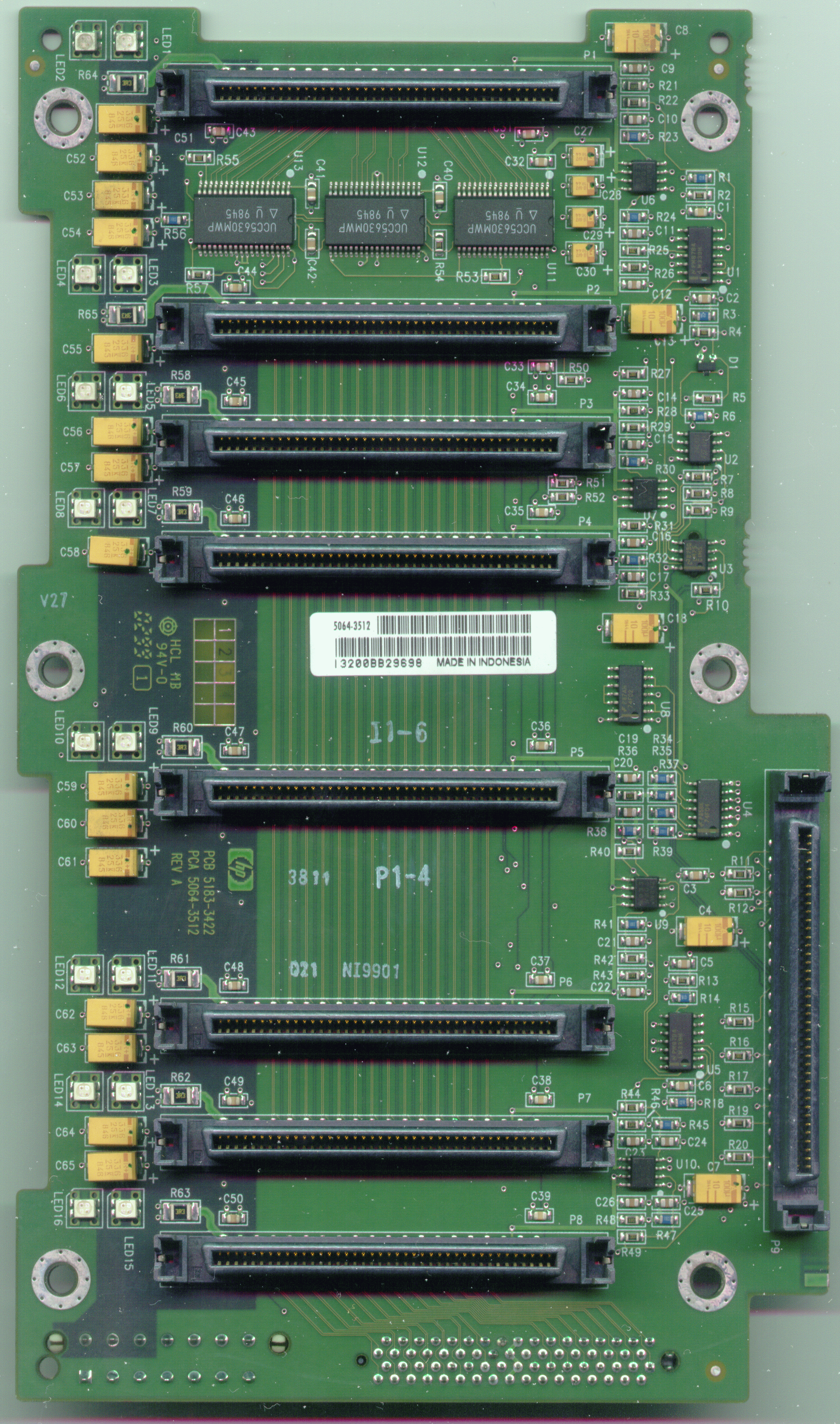

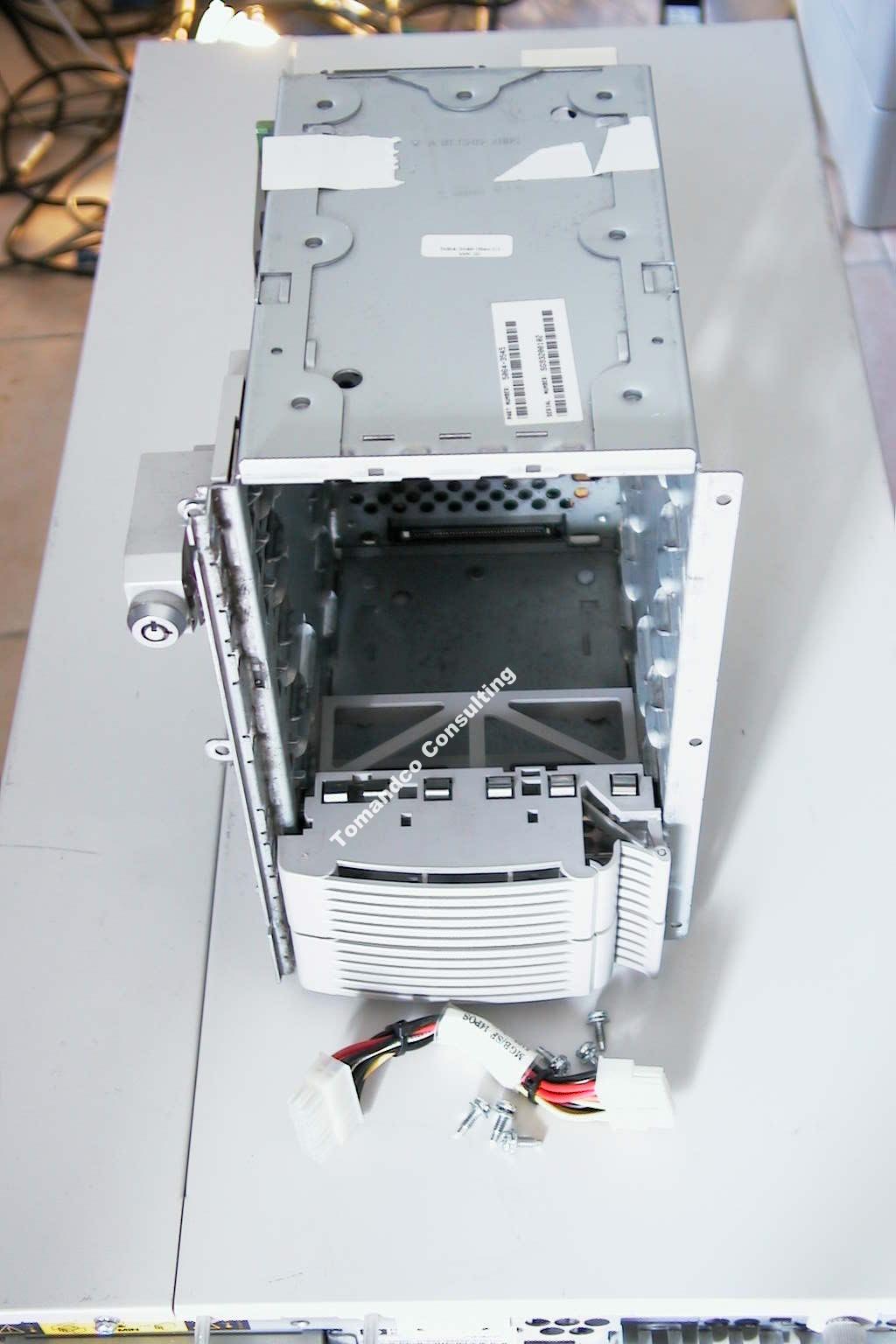

Cestello scsi scsi cage



Part numbers

D6077A

5064-3545

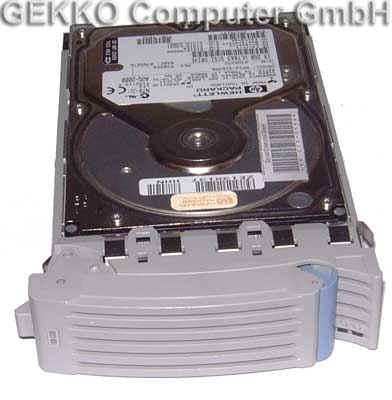

D6106A Disco da 9G
D6108A Disco da 18G
D7174A 18G 7200rpm
D7175A 18G 10000prm
D8210A 36G 10000rpm
D9419A 36G 10000rpm
D9420A Disco da 73G 10000rpm
D9421A Disco da 18G 15000rpm
D9422A Disco da 36G 15000rpm
P1166A 18G 10.000rpm
P1168A 9G 10.000rpm
P1216A 18G 7.200rpm
  P1217A 9G 7.200rpm
P3577A 72G 10000rpm
  P3578A
  P3579A

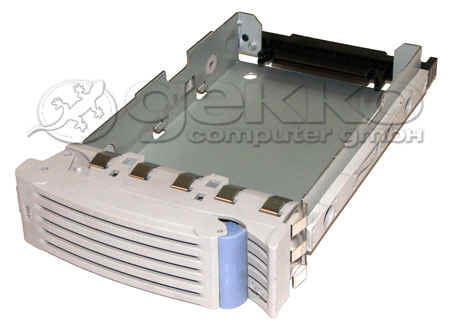

5064-3541 Caddy slim

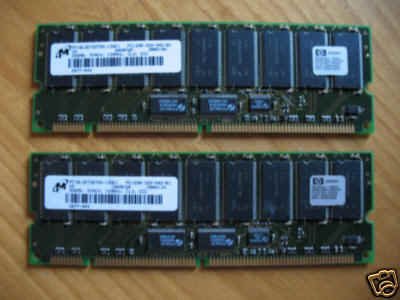

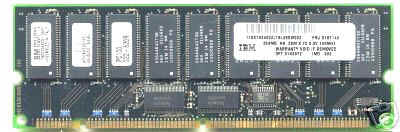

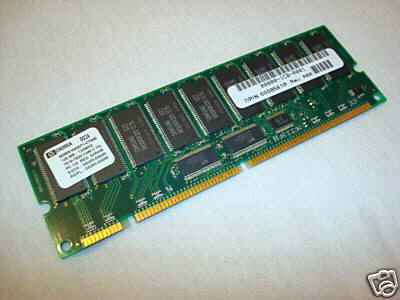

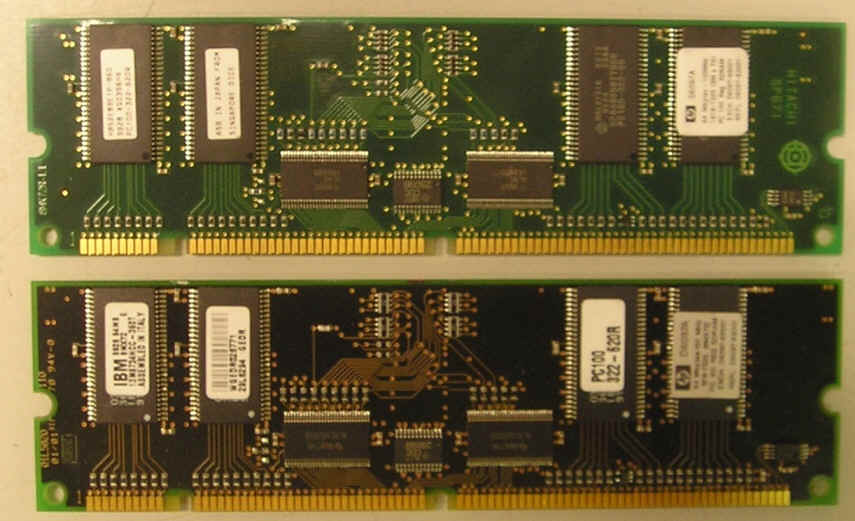

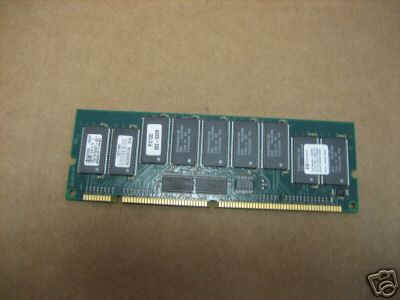

D6097A 64M PC100 ECC Registered
D6098A 128M PC100 ECC Registered
D6099A 256M PC100 ECC Registered
D8264A 64M ram PC133
HP D8265A 128MB NETSERVER PC133 ECC DIMM
D8266A 256M PC133 ECC






HP D4383-60041 NETSERVER LH3 CD-ROM

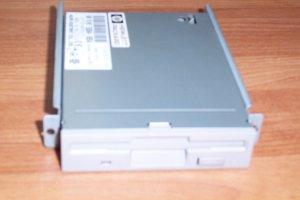

HP 5064-6654 NETSERVER LH3 LH4 FLOPPY DRIVE
