Subsystem Configuration Sheets

This appendix contains illustrations of the front panel options for each Resource Subsystem configuration. The segmentation of the backplanes is also illustrated.

To use this appendix, locate the drawing that matches the front panel of the Resource Subsystem being installed. Locate the drawing of the backplane for this subsystem configuration. In the rectangle provided for each bus slot, identify the board installed in the corresponding slot in the subsystem. Use the Notes section to document any additional information that may be useful in installing or maintaining the subsystem, such as the hardware configurations of specific boards.

Resource Two Subsystem

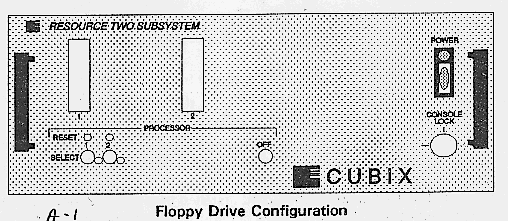

Figure A-1 Floppy Drive Configuration

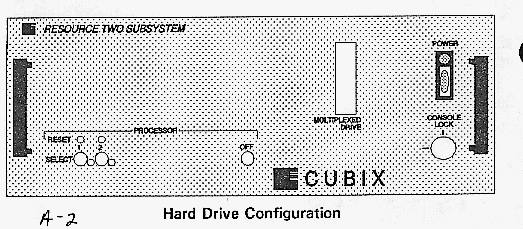

Figure A-2 Hard Drive Configuration

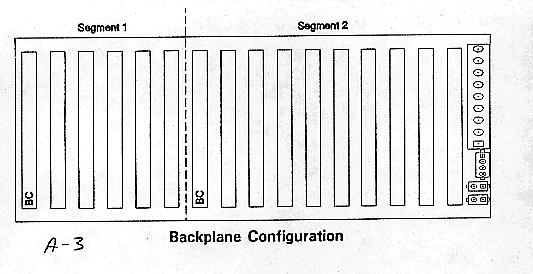

Figure A-3 Backplane Configuration

Resource Three Subsystem

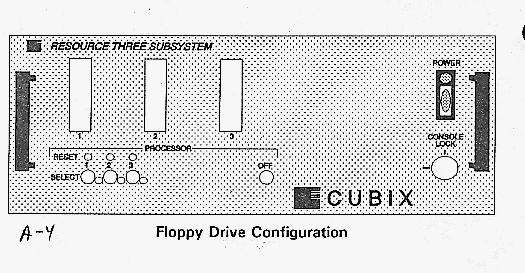

Figure A-4 Floppy Drive Configuration

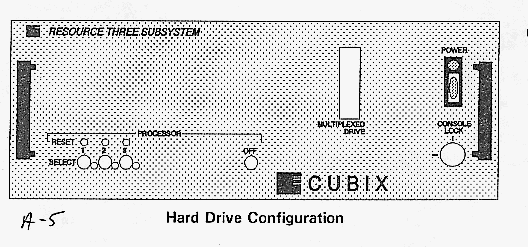

Figure A-5 Hard Drive Configuration

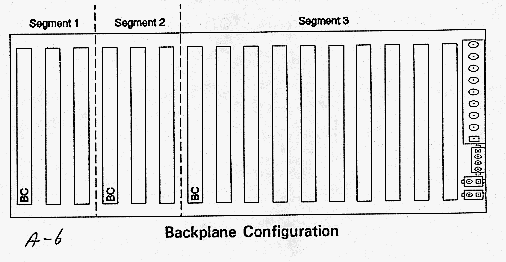

Figure A-6 Backplane Configuration

Resource Four Subsystem

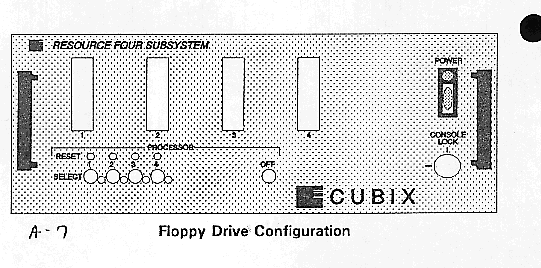

Figure A-7 Floppy Drive Configuration

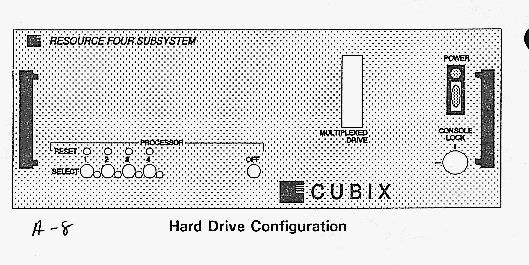

Figure A-8 Hard Drive Configuration

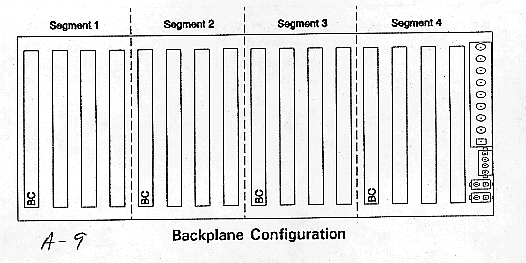

Figure A-9 Backplane Configuration

Resource Five Subsystem

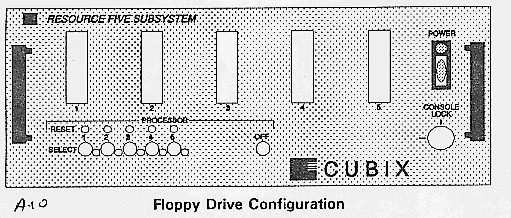

Figure A-10 Floppy Drive Configuration

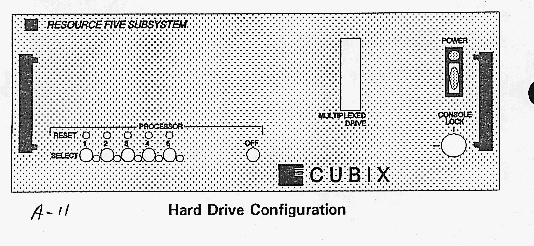

Figure A-11 Hard Drive Configuration

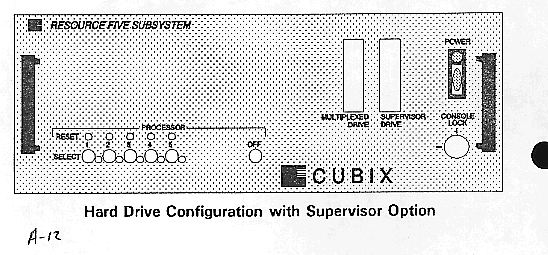

Figure A-12 Hard Drive Configuration with Supervisor Option

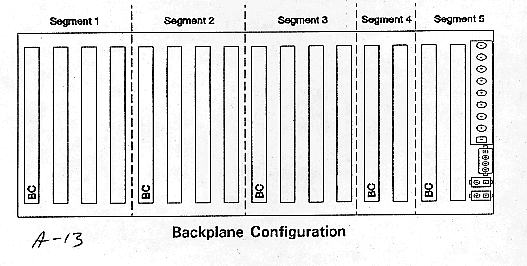

Figure A-13 Backplane Configuration

Resource Six Subsystem

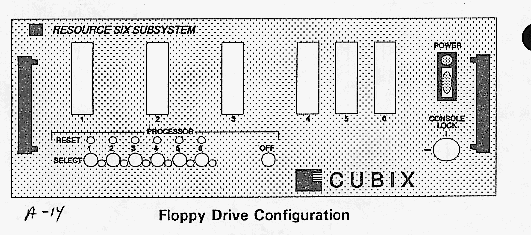

Figure A-14 Floppy Drive Configuration

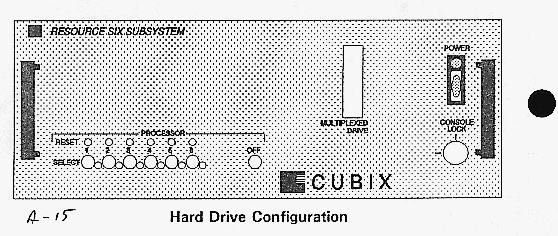

Figure A-15 Hard Drive Configuration

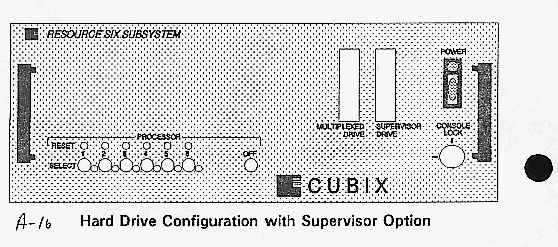

Figure A-16 Hard Drive Configuration with Supervisor Option

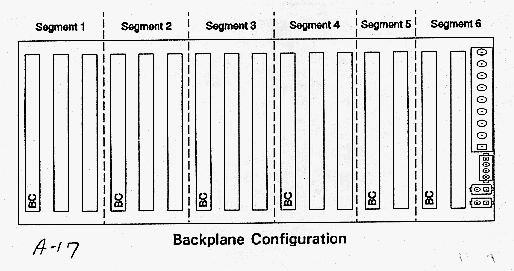

Figure A-17 Backplane Configuration

Resource Seven Subsystem

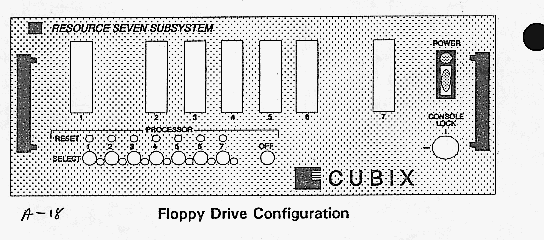

Figure A-18 Floppy Drive Configuration

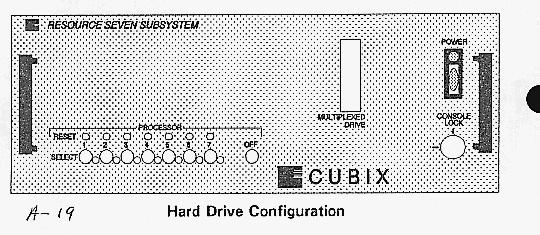

Figure A-19 Hard Drive Configuration

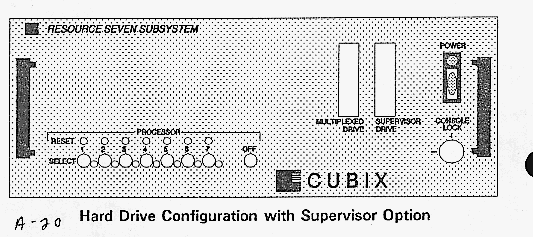

Figure A-20 Hard Drive Configuration with Supervisor Option

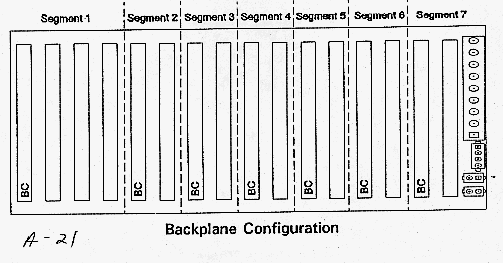

Figure A-21 Backplane Configuration

Resource Eight Subsystem

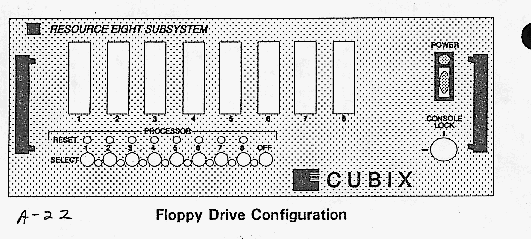

Figure A-22 Floppy Drive Configuration

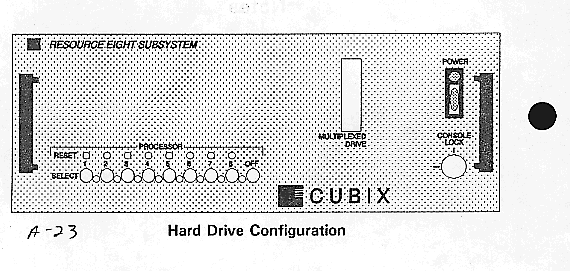

Figure A-23 Hard Drive Configuration

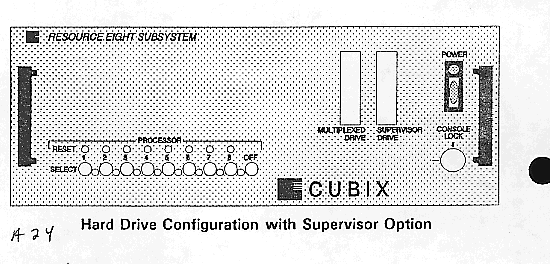

Figure A-24 Hard Drive Configuration with Supervisor Option

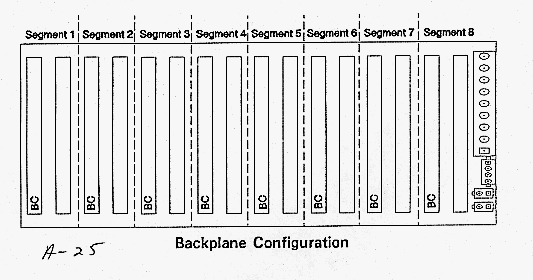

Figure A-25 Backplane Configuration
