CP 8xxx Series
Quick Reference Guide

Jumper & Switch Settings

CP 8xxx Series Board Layout & End Bracket
(Shown with optional External SCSI)

Switch 1 (S1) Settings

S1 - Position 1

The CP8xxx board comes equipped with a 2 position dip switch for reset control. Position 1 is for data set ready (DSR). If position 1 is set in the "on" position (the on and "off" positions are designated by an arrow clearly marked on the switch), the CP8xxx board will reset the CPU on loss of data set ready. The factory default setting for S1, position 1 is in the "off" position.


S1 - Position 2

S1, position 2 is for data carrier detect (DCD). If position 2 is set in the "on" position, the CP8xxx board will reset the CPU when there is a loss of carrier. The factory default setting for S1, position 2 is in the "off" position.

Table 1, S1 Switch Settings

Jumper Settings

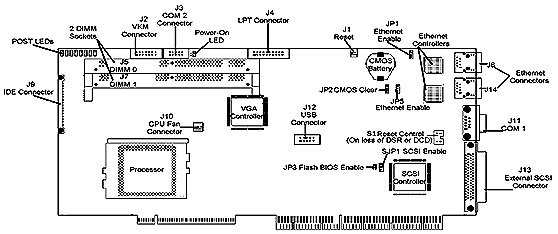

The figure above shows the connector, switch and jumper locations on the board.

JP1 and JP5 - Ethernet

The board is equipped wth two integrated Intel 82559 PCI fast Ethernet controllers with two RJ-45 10/100 BASE TX connectors on the mounting bracket at the rear of the board. The I/O addresses and interrupts are set by the PCI plug and play BIOS at boot time. The controllers are enabled or disabled via jumpers JP1 and JP5 (see Figure above for jumper locations).

JP2 - CMOS Clear

The CMOS battery can be cleared by using JP2 (see Figure above for JP2 location). This battery controls the maintenance and storage of three sets of information: (1)the date and time generated and displayed on the computer screen; (2) the peripheral setup, i.e. programming base register for the chip sets; and (3) the password necessary for entry.

The first two sets of information can be changed during boot-up by following specific directions displayed on the computer screen at the time the computer is booting-up. The CMOS battery will automatically update and store the new information input. However, if setup cannot be entered the normal way, CMOS clear is the recovery mechanism which can be used. Or, if password information has been lost, the CMOS will need to be cleared so the information can be updated, before program entry is possible.

To clear CMOS, the jumper must be removed from pins 1 and 2, and placed on pins 2 and 3. After clearing, the jumper must be reinstalled on jumper pins 1 and 2 before updates can be made.

JP3 - Flash Bios

If the Flash Bios is to be upgraded, a shunt mast be installed on the 2-pin jumper JP3 (see figure above for JP3 location). Upgrades typically come on a floppy disc and are accompanied by upgrade instructions. When the upgrade is complete, the shunt should be removed to protect the system from accidental erasure.

JP4 - IES Interrupt (IRQ 10)

The IES module communicates with the CP8xxx processors in the subsystem via a hardware interrupt which is IRQ 10. The supervisory interrupt is enabled with JP5. If the CP8xxx board is part of the GlobalVision network, supervisory interrupt is necessary and IES Interrupt must be enabled. If this board is not part of the GlobalVision network, IES Interrupt can be disabled with JP4.

Symbios SCSI Controller Jumper Settings

The CP8xxxx board comes equipped to support an internal IDE drive. However, for applications that require external SCSI devices, an integrated Wide Ultra2 SCSI controller (Symbios 53C895) and an external SCSI cable connector (68-pin) can be ordered as an option. This SCSI controller supports both LVD and Single-Ended SCSI devices. The controller is enabled or disabled via a hardware jumper SJP1. (The "S' proceding the "JP" designates the jumper is specific to SCSI functions.)

The SCSI controller is a bus master device which gains control of the PCI bus to transfer data between the CPU memory and the SCSI devices. The I/O base address and interrupts are set by the PCI plug and play BIOS at boot time.

If the SCSI controller is ordered, a SCSI configuration utility is available on boot-up of the board. Shortly after the SCSI BIOS information displays, the configuration program can be accessed by pressing "Control C". The configuration utility will allow you to scan the SCSI bus, change configuration options and view a list of SCSI devices connected to the board.


SJP1 - Enable/Disable SCSI Controller

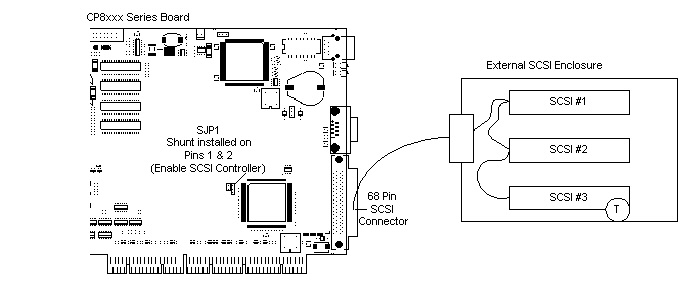

As stated above, the on-board Symbios Wide Ultra2 SCSI controller can be enabled or disabled with SJP1 (see Figure above for SJP1 location).

The SCSI controller supports up to 15 external devices, either Ultra2 LVD or Single Ended Wide. The end of the SCSI chain Must be terminated independent of whether devices are Single Ended or LVD. Consult the owners manual pertaining to the external SCSI device for instructions on how to terminate. The end of the SCSI chan must be terminated independent of whether drives are Single Ended or LVD.

LED Status Indicators

Ethernet Adapter LEDs

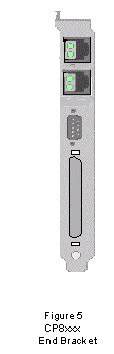

On each RJ-45 connector and visible on the mounting bracket is a pair of LEDs

On the upper LED: When the LED is green it indicates a link to an Ethernet hub and when blinking it is showing network activity

On the lower LED: When it is green it indicates the interface is set to 100Mbit/s.

POST Display LEDs

The CP8xxx board has a group of 8 LEDs arranged above the IDE connector (J9). As the system proceeds through it's Powr On Self Test (POST) these LEDs display binary codes which can be used to diagnose board failures.

Board Power LED

There is a Board Power LED located on the CP8xxx board between COM2 (J3) and the LPT connector(j4) (see Figure 2 for Board Power LED location). This LED will be green when there is power to the board. This LED is only visible when the cover is off the Density System.

SCSI Activity LED

There is a SCSI Activity LED on the back side of the CP8xxx board. This LED will be amber when the SCSI is busy. The SCSI Activity LED is located at the rear of the board, close to the Ethernet Enable jumper (JP1) and is only visible when the cover is off the Density System.

Memory Configuration & Management

• All memory is provided in 168 pin, 72 bit 100MHZ (PC100) ECC SDRAM DIMMs.

• DIMMs do not need to be installed in pairs, and different sizes may be mixed.

• DIMMs may be either registered or unbuffered. Registered and unbuffered DIMMs may not be mixed.

• DIMMs must have gold contacts (edge connectors)


Table 4-1, Memory Map

Table 4-2, I/O Map

System Interrupts

The 16 system hardware interrupts on the SP are represented in Table 4 - 4. Interrupts are managed by two standard 8259A Programmable Interrupt Controllers (PICs). Interrupts at IRQ 0 through 7 are located on the main PIC; IRQ 8 through 15 are on the SLAVE PIC.

Table 4-3, System Interrupts
