Powering On/Off or Resetting
Plug-in Computers in an Density System

DP or SP Series plug-in computers are installed in "Groups" in the Density System. Each group with a plug-in computer is an independent computer.  The other slot(s) in the group can be used for other boards, such as internal modems, or fax boards.

Each group can be powered on or off from the front panel. This allows you to add or remove boards from the group, change switch or jumper settings, or upgrade memory without powering down the entire system.

Each independent computer can also be reset from the front panel.

Tell me more about groups and backplanes

To Select a Group.

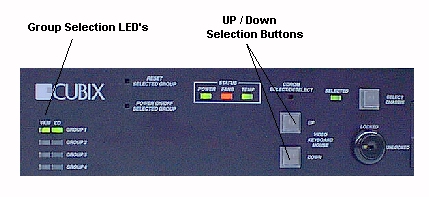

1. On the front panel, select the group by pushing the Keyboard, Video, Mouse Up or Down button until the correct group LED is on.

2. If the group power is on, the LED will be green. If the group power is off, the LED will be red.

To Power a Group On or Off.

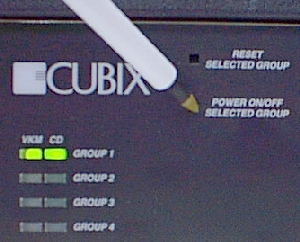

1. To change the selected group power status, use the tip of a pen to press the recessed button labeled Power On/Off Selected Group.

To Reset a Group.

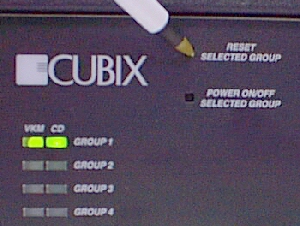

1. To reset a selected group, use the tip of a pen to press the recessed button labeled Reset Selected Group.

Tell me more about all the front panel controls
