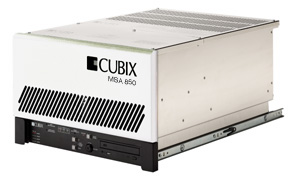

MSA 850

The Multi Server Appliance 850 provides a 19" rack-mount system capable of hosting as many as 8 NetworkVantage blades in a single enclosure. Multiple MSA enclosures can be linked to support larger probe deployments.

MSA 850 Specifications:

Appliance Capacity:
MSA851A Eight blades
MSA852A Six blades
MSA853A Four blades

Power System:
Hot-swap, n+1 system configured with 3 supplies. Max power consumption rated at 650 Watts. Available in 110VAC or 240VAC.

Cooling:
Redundant multi-fan system

Hardware Management:
Intelligent Environmental Supervisor provides alarms and system status. SNMP-based management console.

KVM Support:
Integrated switch

CD-ROM/Floppy:
Switched

Dimensions:
7U RETMA (12.25"/311.15mm x 19"W/482.6mm x 24.4"D/609.4mm)

Mounting:
19" RETMA, 4 Post (ball-bearing rails included)

NetworkVantage Probe Appliance

Deploying multiple NetworkVantage probes couldn’t be faster. Cubix has optimized, pre-configured and tuned the hardware, then tested and packaged Compuware’s NetworkVantage software on a blade appliance. The blades are designed to be hosted in one of Cubix’s Multi Server Appliance (MSA) systems.

NetworkVantage Appliance Blade
1.2GHz Intel Processor, 256GB RAM

Network Interface(s):
Dual Intel Pro 10/100 Ethernet

Operating System:
Microsoft Windows 2000 Pro

Hardware Management:
Remote Control Host and SNMP Agent

NetworkVantage Manager Appliance

Most Probe deployments require a Manager to administer, collect and report Probe data. Cubix has a Manager blade that is easily added to any MSA system. Like the Probe blade, it is pre-configured and tested, ready to plug-n-play. Single or dual-processor blades are available based on volume of network traffic and database requirements.
