Chapter 1
Introduction

Introduction

The LCS Network Server Subsystem is a high-speed AT-compatible microcomputer using Intel's 80486DX microprocessor and the latest PCXI EISA data bus technology.

The LCS Network Server Subsystem is housed in a slide-in, rack- mount enclosure. Gaining access to the LCS Network Server Subsystem is as simple as opening a drawer.

Cubix's modular plug-in CPU and passive backplane architecture reduce upgrade or replacement time to seconds, not hours.

Features

Enclosure

*Standard 19 inch RETMA enclosure

*Slider hardware for easy installation and removal

*250 Watt power supply

*7 PCXI-compliant EISA and 8 ISA expansion slots

*One 3 .5 inch, third-height 1.44 MByte floppy drive

*One 3 .5 inch, half-height tape drive bay

*Three 3 .5inch, half-height hard drive expansion bays

Processing Hardware (BC 4000 Plug-In CPU)

*Intel 80486DX 33 MHz microprocessor

*128KBytes internal cache

*Up to 64 MBytes DRAM

*Super VGA

*Two serial ports

*Parallel port

*Floppy controller

*IDE hard drive controller

Figures

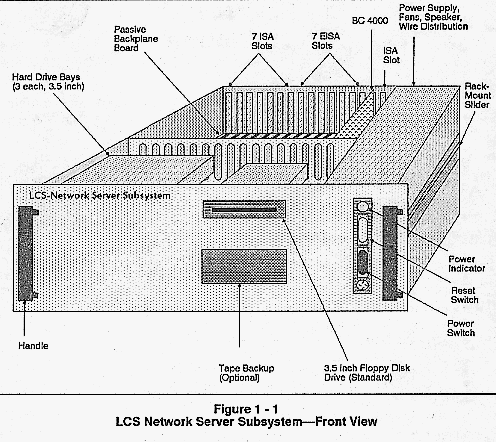

Figure 1-1, LCS Network Server Subsystem - Front view

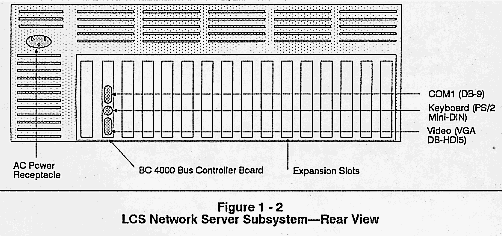

Figure 1-2, LCS Network Server Subsystem - Rear view
