DP 6200 "D" Series
Plug-in Computers

Overview

DP Series plug-in computers plug into Cubix passive backplanes that are divided into independent groups, allowing the installation of up to four DP Series boards in a single Cubix Density System.

Each Cubix dual-SMP server consists of a set of two plug-in boards—a processor board and an I/O board. The processor board contains two Intel® Pentium® Pro processors, memory, and EIDE controllers. The I/O board is tightly coupled to the processor board across a 32-bit bus. The I/O board provides two SCSI controllers and two 10/100Mbps Ethernet controllers.

DP 6200 "D" Series Processor Board

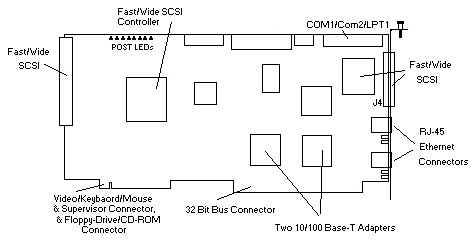

DP 6200 "D" Series I/O Board

When installed in the passive backplane of a Cubix Density System, each DP board set is a fully featured dual-Pentium Pro SMP server. The System multiplexor allows multiple DP Series boards in a system (or multiple systems) to share a single floppy disk drive, monitor, keyboard and mouse.

DP Series board sets include on-board video, two serial ports, one parallel port, keyboard and mouse support, memory, floppy and IDE hard drive support. Also included is two integrated Ethernet controllers with a 10/100 Base-T connector, and two SCSI fast/wide adapters.
