System 1010 Cabinet

The Cubix System 1010 is an enclosure that functions as a centralized network support system. A primary design goal of this product is to fully support integration of the various Cubix Enhanced Resource Systems (ERS) and Fault Tolerant Systems (ERS/FT). The System 1010 may be ordered as a single- or double-wide cabinet.

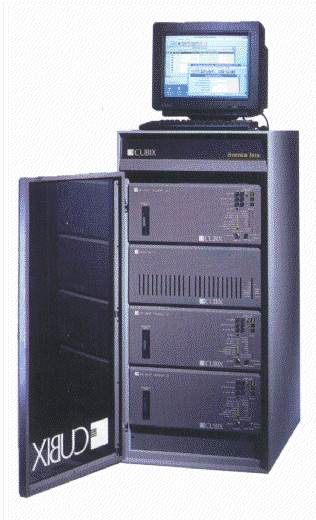

System 1010  Cabinet (Single Width)

Features for each Cubix System 1010 cabinet are listed below:

• 19" (48.26 cm) standard RETMA compatible racks
• Houses up to four Cubix subsystems
• Double-wide option provides support for eight Cubix subsystems
• Power redundancy provided with two independent AC circuits
• Three top mounted fans provide cooling
• Integrated video, keyboard, and mouse interface module to support multiplexing of these devices

Tell me more about the ERS/FT II  Systems

Take me to the System 1010 manual
