SP 7300 Series
Plug-in Computers
Overview
SP 7300 Series plug-in computers with Pentium II processors plug into backplanes that are divided into independent groups, allowing the installation of up to four computers in a single Cubix Density System.

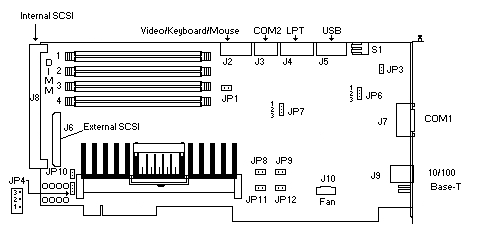

 SP 7300 Series Board with SCSI Drive Bay Connector |
 |
Once installed in an Cubix Density System, each SP Series board becomes an independent computer. The System multiplexor allows all SP Series computers in a system (or multiple systems) to share a single floppy disk drive, monitor, keyboard and mouse.
SP Series computers include on-board video, two serial ports, one
parallel port, keyboard and mouse support, memory, floppy and IDE hard drive support. Also
included is an integrated Ethernet controller with a 10/100 Base-T connector, and an Ultra
Fast/Wide SCSI interface.
Available Information |
| Quick Reference Guide | SCSI Adapter Information |
| DIMM Memory Configuration | File Download Page |
| Ethernet Adapter Information | Video Adapter Information |
| About the Cubix Density System |
|
