FT
Subsystems
Appendix A - Resource Subsystem Configuration

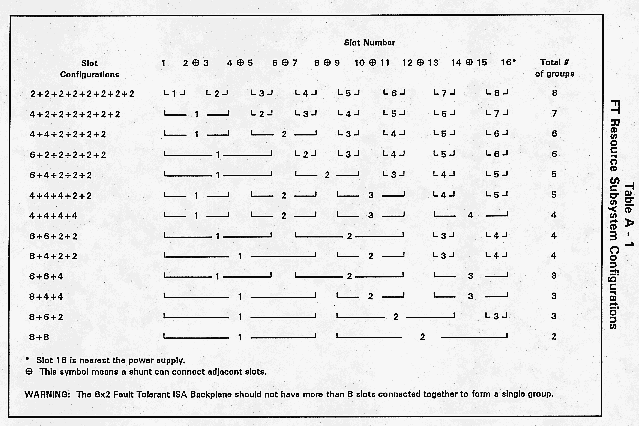

Table A-1 shows how the FT ISA Resource Subsystems can be organized for the various combinations of ISA slot configurations.
Slots 1&2, 3&4, 5&6, 7&8, 9&10, 11&12, 13&14, and 15&16 are electrically connected together.
* Slot 16 is nearest the power supply.
Å This symbol means a shunt can connect adjacent slots.
WARNING: The 8x2 Fault Tolerant ISA Backplane should not have more than 8 slots connected together to form a single group.
