Replacing a Density System
Front System Fan

Remove the front cover of the Density System.

Remove the TOP 2 screws from the fan to be replaced (figure 1).

Figure 1, Location of Mounting Screws

Tilt the top of the fan forward, and carefully remove the fan from the fan housing.

Disconnect the fan power cable from the fan power connector on the system backplane (figure 2).

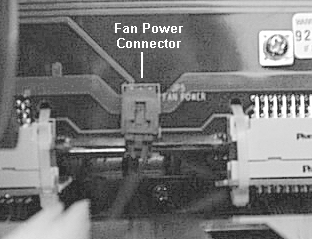

Figure 2, Fan Power Connector

Reverse the above steps to install the replacement fan.
