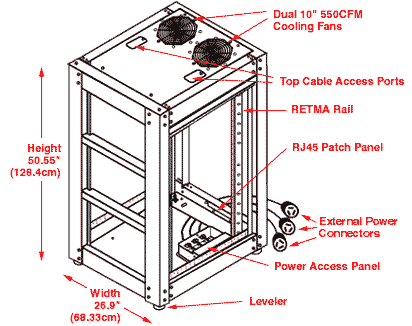

Precision Rack Model PR1100™
Specifications
Physical Specifications
| Dimensions: (External) |
Height - 50.55" (124.4 cm)
Depth - 31.8" (80.77 cm)
Width - 26.9" (68.33 cm) |
Dimensions:
(Internal Useable) |
Height - 40.25" (102.24 cm)
23U RETMA |
| Weight: |
Empty approximately 135lbs. |
| Cooling: |
Two 550 CFM fans mounted on top of rack |
| Shipping
Dimensions: |
Height -
56" (142.24cm)
Depth - 34" (86.36cm)
Width - 34" (86.36cm) |
| Shipping Weight |
246lbs. |
Electrical Specifications
AC Input: |
3 distribution circuits
30A ~120V x 3 |
| Wiring: |
3 Independent 3-wire service (Line, Neutral, Earth) |
| Fans: |
~120V |
| Internal Power Outlets: |
North America
NEMA 5-15p to 1EL-320C13 SJT, 13A/125V, 3x AWG16 |
