Multiple Services Managed as One Enterprise
Cubix's Multi-Server Density systems allow IT managers to control and better manage configuration deployment in large scale projects.

Each Density system is a collection of independent server blades ranging from entry level Celerons® to host I/O applications to dual-processor Pentium III's to run fileserver and database applications. The Density system is an all-in-one solution.

An entire network of services can be pre-configured at a centralized IT solution, quality controlled to verify software setups, inventory controlled and then dispatched to various company locations.

Support can become more manageable since this deployment methodology deters "cowboy integration" where local technicians choose a variety of hardware environments and expect corporate IT to support an undisciplined mix of software drivers and revisions.

Using Cubix systems, IT professionals can turnkey their solutions.

   Back to Space-Saving Server Projects


8 celeronsISP.gif (18124 bytes)

Why Cubix's Density System for Multiple Server Projects?

The Cubix Density™ system is the ideal building block for deploying multiple Internet server systems. Density features an award winning blade architecture that enhances a solutions fault-tolerance, scaleability, and redundancy. The Density is flexible, saves space, SNMP managed, and cost significantly less than an equivalent number of  stand-alone servers.
Scalability - Adding incremental capacity to the system is the important element of a systems performance. Increasing a site’s capacity can be as easy as adding a blade into an available segment in a Cubix multi-server chassis. This can be done without interrupting the other operating blades in the chassis.
Flexibility – Using third party load balancing and clustering products, the Cubix Density system is an ideal platform to deploy your highly available distributed server farm. With the capacity to host as many as 8 server blades in 7U (RETMA), it is the ideal platform for deploying multiple server solutions. A Cubix Density system also allows you to mix and match different processor blades in the same system. One server may only need the performance of single Pentium® III blade while another may need the higher performance of dual-processor Pentium® III blade.

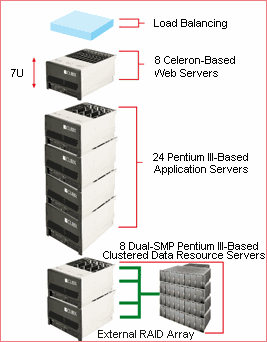

Multi-Tiered Distributed Web Service

 Availability & Redundancy – Where availability is critical, server redundancy is a must. To eliminate single point of failures, a minimum of three blades is recommended. This allows for a single server blade to be serviced offline without interrupting or jeopardizing system operation. Cubix’s multi-server architecture is ideal for building  redundant servers.

In a multi-tiered, distributed server system, multiple server blades are load-balanced to share requests for service. The Density provides as many as 8 industry-standard Intel® processor based blades in 7U that are capable of sharing the load. Multiple Density systems may be deployed to build larger server farms as demand increases.  Using third party clustering products, server redundancy can be improved.  Fail-over server blades can reside side by side within an Density chassis.

Manageability – Network servers are often physically located where the support people are not. Cubix’s Density systems can be centrally managed by Cubix’s GlobalVision™ remote management software for Windows NT environments. Remote management capabilities include hard resetting and power cycling of individual server blades, monitoring fans, temperature, voltages and server activity.
Space saving design – Cubix’s award winning blade architecture requires as little as 7U (RETMA) of space for as many as 8 server blades. That’s less than 1U per server. Cubix reduces the space required for multiple server solutions. This reduces rack costs, cabling headaches, room requirements, and power needs. All saving you money on the bottom line by reducing operating expenses.
Price/Performance –The Cubix Density multi-server system provides a cost effective platform for building highly available, multi-tiered solutions yielding superior performance for less than stand alone server systems. Cubix systems yield a lower cost of ownership from higher reliability, reduced support cost, and faster deployment. With an integrated K/V/M switch, shared floppy and CD-ROM drives, and built-in environmental monitoring and alarms, Cubix reduces peripheral costs while offering features others charge extra.
