Quick Reference Guide

Table of Contents

Front and Rear Views

Keyboard and Monitor Connector

Bus Master Board

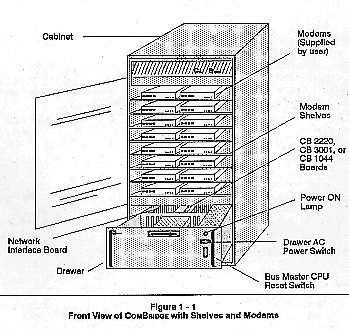

Front View with Modem Shelves

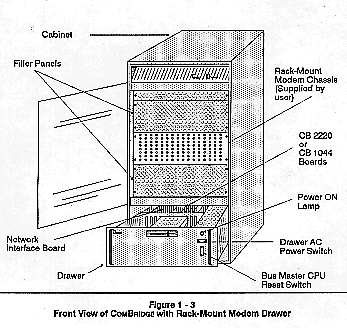

Front View with Rack Mounted Modem Chassis

Rear View with Modem Shelves

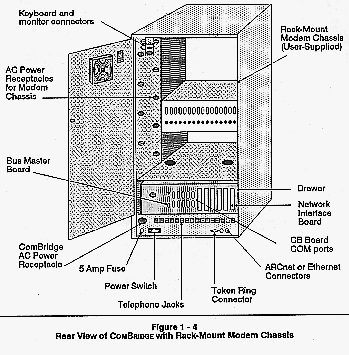

Rear View with Rack Mounted Modem Chassis

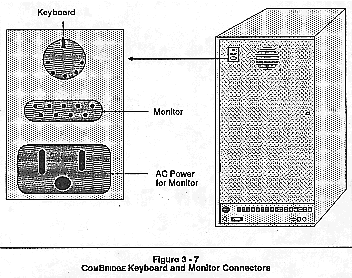

Keyboard and Monitor Connectors

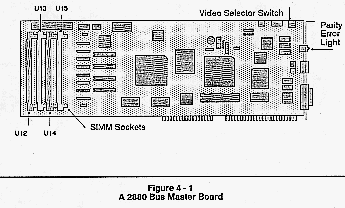

Bus Master Board (A2880)

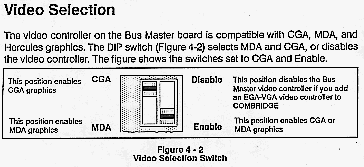

Video Selection switch

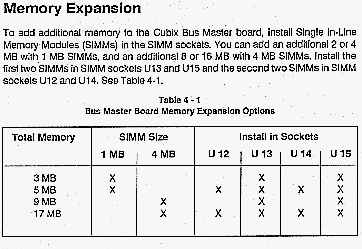

Memory Options
