DP6200 Series For PowerSMP
Chapter 1 - Introduction
Overview

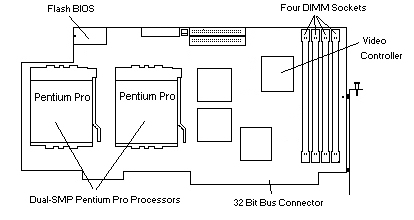

Figure 1-1, DP6200 Series Processor Board

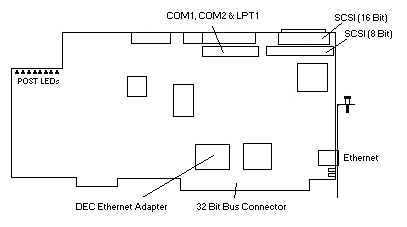

Figure 1-2, DP6200 Series I/O Board
Standard Features
One parallel port |
|
Technical Specifications
Table 1-1, DP 6200 Series Specifications
| Processor | Pentium Pro 200 MHz |
| Level 2 Cache | 256 Kbytes, 512 Kbytes, or 1 MByte |
| Flash BIOS | American Megatrends, Inc. (AMI) Year 2000 Compliant |
| Chipset | Natoma (Intel 440LX) |
| External Bus Interface | 32 Bit ISA and PCI |
| Memory | 16 MB to 1GB 168-pin, buffered, 60-nanosecond, ECC DIMMs. |
| Keyboard Support | PS/2 style keyboard (connected through Density System MUX) |
| Mouse Support | Logitech compatible PS/2 mouse (connected through Density System MUX) |
| Ethernet | 10/100 Base-T Autosense DEC 21140 Ethernet Driver Support for Win95, WIN NT, Win 3.1/DOS |
| Video | SVGA 1MB Video RAM S3 TRIO64+ Video Chip Driver Support for Win95, WIN NT, Win 3.1/DOS |
| SCSI Controller | Fast/Wide SCSI II Interface Max. Transfer Rate 20 Mbits / sec. Symbios 825A Chipset Driver Support for Win95, WIN NT, Win 3.1 |
| IDE Controller | Up to 2 internal EIDE Hard Drives Max. Transfer Rate 22 Mbits / sec. |
| COM Ports | Super I/O Chip, SMC FDC37C669 16C550 Compatible Baud rates 300 to 460 KB |
| LPT1 Port | Centronics compatible interface (Super I/O Chip, SMC FDC37C669) |
| Power Requirements Total Power |
25.12 Watts 18 Amps Max 0.3 Amps max .05 Amps max |
