BC 5200TX Series
Chapter 1 - Introduction
Overview
The BC 5200TX Series are single-board computers based on the Intel Pentium MMX processor. BC 5200TX Series boards are designed to be plugged in to a Cubix ERS/FT II System. The board is available with a Fast/Wide SCSI controller (BC5200TX), or without the SCSI interface (BC5200TX/LE).

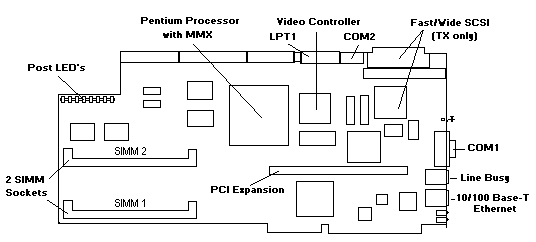

Figure 1-1, BC 5200TX Series Board
Standard Features
Optional Features
Technical Specifications
Table 1-1, BC 5200TX and TX/LE Specifications
| Processor | Pentium with MMX 200 |
| Level 2 Cache | 512 Kbytes |
| Flash BIOS | American Megatrends, Inc. (AMI) Year 2000 Compliant |
| Chipset | Triton II (Intel 430HX) |
| External Bus Interface | ISA / PCI |
| Memory | 16 MB to 256 MB 70-pin, 60-nanosecond, SIMMs. |
| Keyboard Support | PS/2 style keyboard (connected through System MUX) |
| Mouse Support | Logitech compatible PS/2 mouse (connected through System MUX) |
| Ethernet | 10/100 Base-T Autosense DEC 21140 Ethernet Driver Support for Win95, WIN NT, Win 3.1/DOS |
| Video | SVGA 2MB Video RAM S3 TRIO64+ Video Chip Driver Support for Win95, WIN NT, Win 3.1/DOS |
| SCSI Controller (BC5200TX only, Model BC5200TX/LE available without SCSI interface) |
Fast/Wide SCSI II Interface Max. Transfer Rate 20 Mbits / sec. Symbios 825A Chipset For use with external SCSI devices only Driver Support for Win95, WIN NT, Win 3.1 |
| IDE Controller | Up to 2 internal EIDE Hard Drives Max. Transfer Rate 22 Mbits / sec. |
| COM Ports | Super I/O Chip, SMC FDC37C669 16C550 Compatible Baud rates 300 to 460 KB |
| LPT1 Port | Centronics compatible interface (Super I/O Chip, SMC FDC37C669) |
| Power Requirements Total Power |
50.2 Watts |
