SP 5200 Series
Chapter 1 - Introduction
Overview
The SP 5200 Series are single-board computers based on the Intel Pentium MMX processor. SP boards are designed to be plugged in to a Cubix Density System.

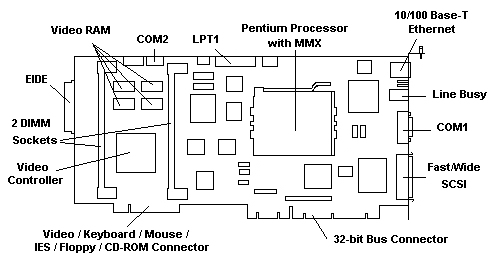

Figure 1-1, SP 5200 Series Board
Standard Features
Optional Features
Technical Specifications
Table 1-1, SP 5200 Series Specifications
| Processor | Pentium with MMX 200 or 233 MHz |
| Level 2 Cache | 512 Kbytes |
| Flash BIOS | American Megatrends, Inc. (AMI) Year 2000 Compliant |
| Chipset | Triton II (Intel 430HX) |
| External Bus Interface | PCI / ISA |
| Memory | 16 MB to 512 MB 168-pin, buffered, 60-nanosecond, ECC DIMMs. (DIMMs can be used single or in pairs) Max. RAM - 512 MB (2 ea. 256 MB DIMMs) |
| Keyboard Support | PS/2 style keyboard (connected through Density System MUX) |
| Mouse Support | Logitech compatible PS/2 mouse (connected through Density System MUX) |
| Ethernet | 10/100 Base-T Autosense DEC 21140 Ethernet Driver Support for Win95, WIN NT, Win 3.1/DOS |
| Video | SVGA 2MB Video RAM S3 TRIO64+ Video Chip Driver Support for Win95, WIN NT, Win 3.1/DOS |
| SCSI Controller | Fast/Wide SCSI II Interface Max. Transfer Rate 20 Mbits / sec. Symbios 825A Chipset For use with external SCSI devices only Driver Support for Win95, WIN NT, Win 3.1 |
| IDE Controller | Up to 2 internal EIDE Hard Drives Max. Transfer Rate 22 Mbits / sec. 1 IDE CD-ROM (connected through Density System MUX) |
| COM Ports | Super I/O Chip, SMC FDC37C669 16C550 Compatible Baud rates 300 to 460 KB |
| LPT1 Port | Centronics compatible interface (Super I/O Chip, SMC FDC37C669) |
| Power Requirements Total Power |
50.2 Watts |
