ComCube
Quick Reference Guide


Table of Contents

Front and Rear View

Simm Jumpers

Video Jumpers

PCB View

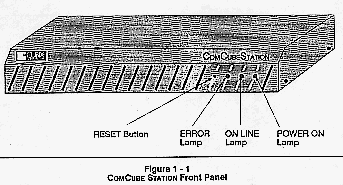

Front View

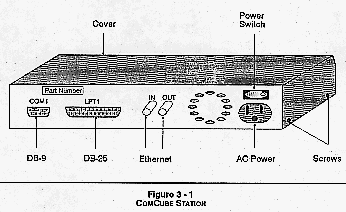

Rear View

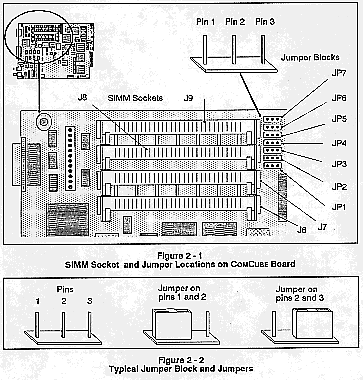

Simm Socket and Jumper Location

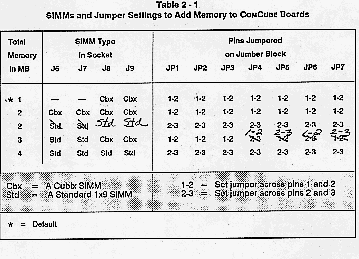

Simm Socket and Jumper Settings

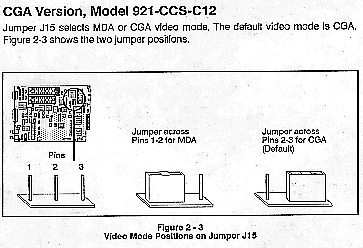

Video Jumpers, Model 921-CCS-C12

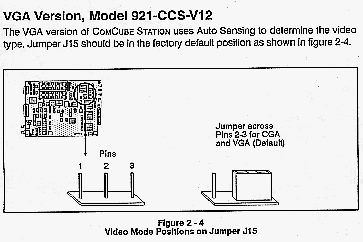

Video Jumpers, Model 921-CCS-V12

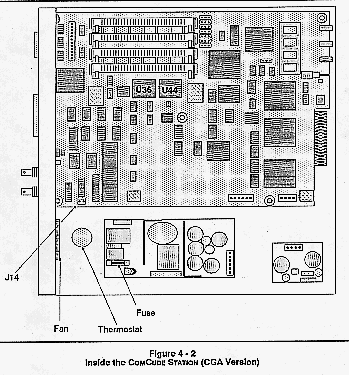

ComCube PCB
