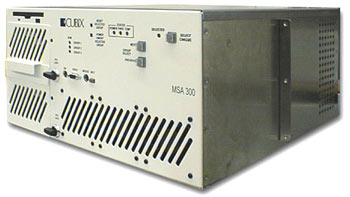

MSA 300

Ideal for deployments requiring one, two, or three DNS or IP Commander servers. The Multi Server Appliance 300 is excellent for deployments that are "starting small".

MSA 300 Specifications:

Appliance Capacity:
Three blades

Power System:
Dual, redundant, hot-swap power supplies. Max power consumption rated at 325 Watts. Available in 110VAC or 240VAC.

Expansion Slots:
One PCI slot per blade

Cooling:
Redundant multi-fan system

Hardware Management:
Intelligent Environmental Supervisor provides alarms and system status. SNMP-based management console.

KVM Support:
Integrated switch

CD-ROM/Floppy:
Switched

Dimensions:
5U RETMA (8.75"H/311.15mm x 19"W/482.6mm x 17"D/431.8mm)

Mounting:
19" RETMA, 2 Post (mounting bracket included)

DNS Commander Appliance

Deploying multiple (primary and secondary) DNS Commander Series systems couldn't be faster. Cubix has optimized, pre-configured and tuned the hardware, then tested and packaged Incognito DNS Commander Series software on a blade appliance. The blades are designed to be hosted in one of Cubix's Multi Server Appliance (MSA) systems.

DNS Commander Appliance Blade

Network Interface(s):
Dual Intel Pro 10/100 Ethernet

Operating System:
Microsoft Windows 2000 Pro or hardened Red Hat Linux

Optional Interface(s):

Appliance w/GIGABIT Ethernet Card

Hardware Management:
Remote Control Host and SNMP Agent

IP Commander Appliance

Deploying multiple (primary and secondary) IP Commander Series systems couldn't be faster. Cubix has optimized, pre-configured and tuned the hardware, then tested and packaged Incognito's IP Commander Series software on a blade appliance. The blades are designed to be hosted in one of Cubix's Multi Server Appliance (MSA) systems.

IP Commander Appliance Blade

Network Interface(s):
Dual Intel Pro 10/100 Ethernet

Operating System:
Microsoft Windows 2000 Pro or hardened Red Hat Linux

Optional Interface(s):

Appliance w/GIGABIT Ethernet Card

Hardware Management:
Remote Control Host and SNMP Agent
