BC F Series
Chapter 5 - Troubleshooting

Continual Resets

The Cubix Supervisory System supports a CPR (Cubix Processor Recovery) function designed to automatically reset an inactive BC F Series processor. If a Supervisory System is installed with the CPR function enabled and a BC F Series processor continuously resets, follow the steps below.

1. Disable CPR on the resetting BC F Series. Verify that the erroneous resets cease.
2. Verify that the appropriate software is installed on the BC F Series:

3. Verify the S2 switch setting on the BC F Series processor. It must be set to configure the Supervisory Interrupt on IRQ 15 or IRQ 10. Refer to Chapter 2 - Hardware for switch configurations.
4. Verify that the interrupt selection (IRQ 15 or IRQ 10) of the hardware (via S2) and the software (via command line parameters) match.
5. F Refer to the Software Installation & Configuration section in Chapter 3 for more information on installation and command line parameters of the software components.

NIC Driver Installation

To use the integrated Ethernet controller on the BC F Series processor, a NIC driver must be installed. In Novell environments, the name of the driver is DC21X4.LAN (for BC F Series processors installed as NetWare servers or routers) or DC21X4.COM (for BC F Series processors installed as NetWare workstations). Complete instructions for NIC driver installations in NetWare and other network environments may be found in the appendices of this manual.

Resets on Modem Initialization

If a BC F Series processor is configured as a host for remote communication sessions, and the BC F Series resets when the remote communication software is loaded, examine switch Sl. If reset on loss of DCD is enabled, the modem is probably toggling DCD during initialization. Contact the modem vendor to determine how to correct this condition.

Monochrome Monitor with CubixConnect

Cubix offers a CubixConnect product consisting of Novell's Connect software integrated onto Cubix hardware. Cubix provides software to simplify the installation of CubixConnect in the field. This software can exhibit display problems when run on a BC F Series processor connected to a monochrome monitor.

To correct these video difficulties" use the Cirrus CLMODE utility available on the Cubix BBS (refer to the Acquiring Additional VGA Drivers section of Chapter 3). The command:

clmode f

forces monochrome graphics support. Using this command will allow the CubixConnect utility to function properly.

Monochrome Monitor on BC F Series Workstation

The default CONFIG.SYS file provided with BC F Series processors includes the following line:

emm386 I = bOO00-bffff

This statement instructs emm386 to include the memory bOO00-bffff in its memory allocations. This can cause a video conflict with monochrome monitors attached to BC F Series processors functioning as NetWare workstations. To resolve the conflict, delete this inclusion and reboot the BC F Series processor.

Mouse Problems

Sometimes problems occur if a mouse is connected to a BC F Series processor via a multiplexer (mux). For proper muxed mouse operation under DOS (or Windows) the following steps must be taken.

1. The CONFIG.SYS file must contain the line:
2. device = bcsetup.sys
3. A mouse driver must be loaded (e.g., Logitech's MOUSE.COM or Microsoft's MOUSE.EXE).
4. The mouse device must be a Logitech PS/2 style bus mouse.
5. The processor must boot with the segment selected so that the mouse is detected when the driver loads.

If MUXed operation is required with Windows V3.1, these additional steps must be followed:

1. The file VHOTFIX.386 must be copied to the \WINDOWS\SYSTEM subdirectory.
2. Add the following line to the [386enh] section of the SYSTEM.INI file in the \WINDOWS subdirectory:

device = vhotfix.386

Line Busy

If the Line Busy Circuit does not cause the line to appear busy, check the cable connections.

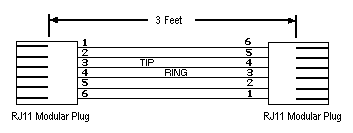

The center two pins of the RJ-11, tip and ring, should measure approximately 48 volts DC under on-hook conditions. When the Line Busy Module has asserted an off-hook condition, the tip-ring voltage should be approximately 8 volts DC

If the Line Busy Circuit is not asserting off-hook, check the state of the DTR signal (pin 4 of the DB-9 RS-232 connector). DTR is false when it is -6 volts with respect to pin 7 of this connector. DTR is true when it is +6 volts with respect to pin 7. The voltage on pin 20 can be measured on the modem DB-25 connector while the computer DB-9 connector is cabled to the Cubix processor.

If DTR is not changing as expected, check the Cubix processor's COM1 port hardware. Verify the COM1 port configuration in the communication application software.

If DTR is changing properly and the telephone line is not changing from 48 volts to 8 volts, the Line Busy Circuit is probably defective. Contact Cubix Customer Service for assistance.
