BC 5190/5120/SE

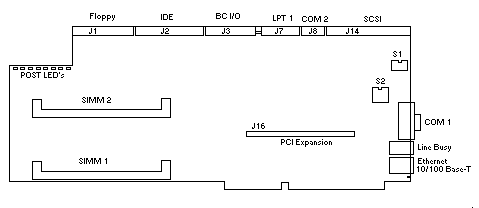

Quick Reference Guide
J1 | Floppy Drive |
J2 | IDE Drive |
J3 | BC I/O |
J7 | LPT1 |
J8 | COM2 |
J11 | COM1 |
J12 | Line Busy |
J13 | Ethernet |
J14 | SCSI (8 bit) |
J16 | PCI Expansion |
1 ground | 2 speed | 3 ground |
4 n/c | 5 ground | 6 n/c |
7 ground | 8 index | 9 ground |
10 motor on | 11 ground | 12 drive sel 2 |
13 ground | 14 motor sel 1 | 15 ground |
16 motor on 2 | 17 ground | 18 direction |
19 ground | 20 stop step | 21 ground |
22 write data | 23 ground | 24 write gate |
25 ground | 26 track 0 | 27 ground |
28 write protect | 29 ground | 30 read data |
31 ground | 32 side select | 33 ground |
34 disk change |
1 reset | 2 ground | 3 data 7 |
4 data 8 | 5 data 6 | 6 data 9 |
7 data 5 | 8 data 10 | 9 data 4 |
10 data 11 | 11 data 3 | 12 data 12 |
13 data 2 | 14 data 13 | 15 data 1 |
16 data 14 | 17 data 0 | 18 data 15 |
19 ground | 20 n/c | 21 n/c |
22 ground | 23 iow | 24 ground |
25 ior | 26 ground | 27 n/c |
28 bale | 29 n/c | 30 ground |
31 idint | 32 n/c | 33 sa1 |
34 n/c | 35 sa0 | 36 sa2 |
37 cs5 | 38 hcs1 | 39 n/c |
40 n/c |
1 gnd | 2 n/c | 3 ledsel- |
4 lanled | 5 ideled | 6 txdiled |
7 rxdiled | 8 n/c | 9 dtriled |
10 dcdiled | 11 spkr | 12 resetsw- |
13 ack | 14 poll | 15 mseclk |
16 mse data | 17 kclk | 18 kdata |
19 + 5vf | 20 vsync | 21 hsync |
22 gnd | 23 blu | 24 grn |
25 red | 26 gnd |
This header requires a optional I/O adapter from Cubix. Attempting to connect a device directly to this connector will damage the board.
1 DCD (data carrier detect) | 2 RD (receive data) |
3 TD (transmit data) | 4 DTR (data terminal ready) |
5 GND (ground) | 6 DSR (data set ready) |
7 RTS (request to send) | 8 CTS (clear to send) |
9 RI (ring indicator) |
Note: The COM2 header requires a optional I/O adapter from Cubix. Attempting to connect a serial device directly to this connector will damage the board.
1 DCD (data carrier detect) | 2 RD (receive data) |
3 TD (transmit data) | 4 DTR (data terminal ready) |
5 GND (ground) | 6 DSR (data set ready) |
7 RTS (request to send) | 8 CTS (clear to send) |
9 RI (ring indicator) |
1 n/c | 2 n/c |
3 tip | 4 ring |
5 n/c | 6 n/c |
1 transmit data (+) | 2 transmit data (-) |
3 Receive data (+) | 4 n/c |
5 n/c | 6 receive data (-) |
7 n/c | 8 n/c |
Information not available
Information not available
sw1 | sw2 | |
Reset when DSR drops on COM1 | on | off |
Reset when DCD drops on COM1 | off | on |
Reset when DCD or DSR drops on COM1 | on | on |
Reset disabled | off | off |
Factory settings (default) | off | off |
Note: If positions 1 and 2 are both set to ON, then loss of DSR or DCD will reset the BC processor.
sw1 | sw2 | sw3 | sw4 | sw5 | |
Supervisory IRQ to 10 | on | off | |||
Supervisory IRQ to 15 | off | on | |||
Disable Supervisory IRQ | off | off | |||
PS/2 Mouse on IRQ 12 | on | ||||
Disable PS/2 Mouse | off | ||||
VGA Enabled | on | ||||
VGA Disabled | off | ||||
SCSI Terminator Enabled | off | ||||
SCSI Terminator Disabled | on | ||||
Factory settings (default) | off | on | on | off | on |
All system memory is provided in 72-pin by 36 bit standard 70ns SIMM modules. For the proper placing of SIMM modules, see table below. Note that both banks must be filled with the same type of SIMM. No empty banks are allowed.
Simm Socket 1 | Simm Socket 2 | Total |
4 | 4 | 8 |
8 | 8 | 16 |
16 | 16 | 32 |
32 | 32 | 64 |
64 | 64 | 128 |
IRQ | Description |
0 | Timer Click |
1 | Keyboard |
2 | Second PIC controller |
3 | COM2 |
4 | COM1 |
5 | Available/Ethernet |
6 | Floppy Disk Controller |
7 | LPT1 |
8 | Real-Time Clock |
9 | Redirected IRQ2 |
10 | Available/IES (s2) |
11 | Available/SCSI |
12 | Available/PS2 Mouse (s2) |
13 | Math Coprocessor |
14 | Fixed Disk Controller |
15 | Available/IES (s2) |
0000-00FF | Various "AT" functions |
01F0-01F7 | IDE hard drive interface |
02F8-02FF | COM 2 |
03A0 | Cubix supervisory interface |
03A8-03AF | IES serial port |
03B4-03B5 | VGA |
03BC-O3BF | LPT1 |
03C0-03CF | VGA |
03D4-03D5 | VGA |
03F0-03F7 | Floppy/IDE |
03F8-03FF | COM 1 |
PCI PORTS | |
0CF8-0CFF | Used by PCI chipset |
FC00-FC7F | Used by SCSI adapter |
FF80-FF9F | Used by Ethernet controller |
10000-7FFFF | 127MB | Extended Memory |
E000-FFFF | 128KB | Reserved for system and PCI ROM BIOS |
CAA00-DFFF | 96K | Available as Expanded (EMS) or Upper Memory (UMB) |
C800-CABFF | 11K | SCSI BIOS (if installed) |
B800-BFFF | 32K | VGA/CGA Video Memory |
B000-B7FF | 32K | VGA/Mono Video Memory |
A000-AFFF | 64K | VGA Video Memory |
0000-9FFF | 640K | Conventional DOS |
