Density 1500
4x4 with
Internal Hot Plug Drives







Call Us:
(800) 829-0550


Density 1500 System Now Available With Internal Hot-Plug RAID5 Array

Cubix now offers Density 1500 systems with hot-plug configuration:
4 Dual Pentium III blade servers each with hot-plug RAID 0, 1, or 5 support

This configuration allows you to configure as many as 4 fault resilient servers featuring front-removable hot pluggable drives without having to purchase separate external storage subsystems. Great for Windows 2000 Server, Terminal Server, SQL Server and Linux server based network projects!

Unlike other blade server designs, Cubix allows the internal integration of RAID arrays. This saves rack space and additional hardware equipment costs - plus your storage system benefits from all the fault-tolerant features of the Density chassis such as n+1 power systems and remote management.

Integrated drive arrays will save you money and space. Contact a Cubix Representative today for more information and a price quotation.

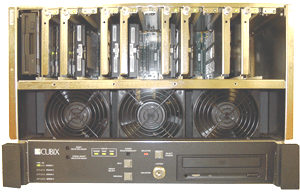

D1500 Front View
Configured w/mirrored hot-plug drives

Specifications:

Blade subsystem (Density 1500 chassis):
• Dual Pentium III processors @ up to 1.4 GHz
• Up to 4 GB RAM per blade
• Three 73 GB SCA drives ( 219GB per blade) with 64 bit RAID controller
• Hot plug SCSI backplane per blade with automatic power decoupler to guarantee that power is off the drive before removal and insertion of its replacement. This design prevents inadvertent disruption of the SCSI bus when replacing drives.
• Dual 10/100 Ethernet on-board

Density 1500 Chassis:
• Built-in KVM switch
• Built-in shared CD and floppy support
• n+1 hot swap, load-sharing power supplies
• 7U, includes rails



Performance Line Density Series 1500
