QL 4001
Chapter 3 - Hardware Reference
Serial Port Connectors and Cables
Parallel Port Connector
Optional Monitor and Keyboard
Optional Mouse
Optional Disk Drive
The QL 4001 boards provide two standard PC/ATtype COM ports. These ports use Mini-DIN 9 female connectors. The following cables may be acquired from Cubix:

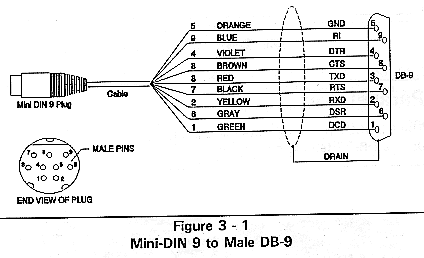

Figure 3-1, Mini-DIN 9 to Male DB-9.

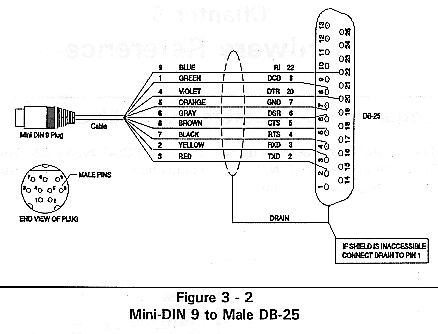

Figure 3-2, Mini-DIN 9 to Male DB-25
The QL 4001 provides a standard parallel port (LPT1). The LPT1 port uses a DB-25 female connector.

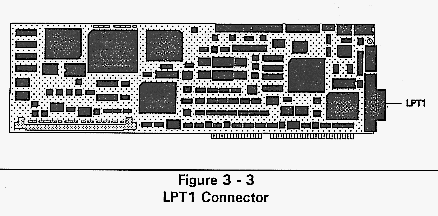

Figure 3-3, LPT1 Connector.
LPT1 (DB-25)
Pin # Definition Pin # Definition 1 Strobe 14 Auto Feed XT 2 Data 0 15 Error 3 Data 1 16 Initialize Printer 4 Data 2 17 Select Input 5 Data 3 18 Ground 6 Data 4 19 Ground 7 Data 5 20 Ground 8 Data 6 21 Ground 9 Data 7 22 Ground 10 Acknowledge 23 Ground 11 Busy 24 Ground 12 Paper Empty 13 Select
The QL 4001 will optionally support a VGA monitor and PS/2 keyboard. This requires a Cubix printed circuit board (PCB) adapter and bracket, and a single panel opening where the DB-15 High Density and Mini-DIN 6 connectors can be installed. Both the monitor and the keyboard interfaces are provided on the same PCB adapter. A 14-pin flat ribbon cable is required to connect the monitor and keyboard adapter to the QL 4001.
INSTALLATION
Warning: Perform a proper shutdown and disconnect power from the system before beginning this procedure.
1. Install the Cubix PCB adapter in a panel opening on the system. Typically, an opening provided for an empty board space is dedicated to the monitor and keyboard connectors. In this case, install the bracket next to the QL 4001 board requiring the monitor/keyboard ports, and tighten the screw firmly.
Alternately, if the monitor and keyboard connectors are being installed into a Cubix auxiliary junction panel, the bracket provided with the monitor/keyboard adapter should be removed. Remove the bracket from the connectors and install the adapter into the desired opening.

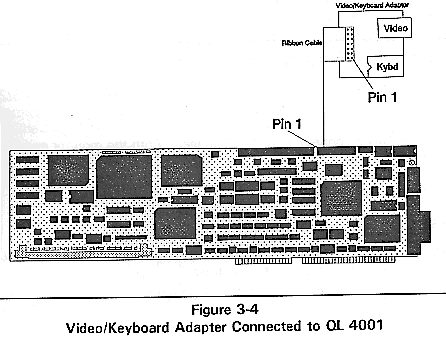

2. Connect one end of the 14pin ribbon cable to the video/keyboard mux header on the QL 4001 board (refer to Figure 3-4). The pin-one side of the ribbon cable is marked with a colored (blue or red) stripe. Pin one on the QL 4001 is on the left side of the header when the edge connector is down. Align the pin-one side of the ribbon cable with pin one on the header.
3. Connect the opposite end of the 14-pin cable to the header on the Cubix adapter board. Pin one on the adapter is indicated in Figure 3-4. Align the pin-one side of the ribbon cable with pin one of the 14-pin header on the adapter board.
4. If a monitor is to be used, plug the monitor's cable into the DB-15 HD connector.
5. If a keyboard is to be used, plug the keyboard connector into the Mini-DIN 6.
A PS/2 mouse input port may optionally be added to the QL 4001. This requires a Cubix printed circuit board (PCB) adapter and bracket, and a single panel opening where the Mini-DIN 6 can be installed. The adapter actually houses two Mini-DIN 6 connectors, providing a mouse connector for two QL 4001 boards. Use of the second connector is optional. To connect the mouse port requires a 5-conductor cable.
INSTALLATION
Warning: Turn off the power to the system before beginning this procedure.
1. Install the Cubix PCB adapter in a panel opening on the system. Typically, an opening provided for an empty board space is dedicated to the mouse connectors. In this case, install the bracket next to the QL 4001 board(s) requiring a mouse port, and tighten the screw firmly.
Alternately, if the PCB is being installed into a Cubix auxiliary junction panel, the bracket provided with the mouse adapter should be removed. Remove the bracket from the adapter and install it into the desired opening.
2. Connect one end of the 5-conductor cable to the PS/2 mouse header on the QL 4001 board. Pin numbers one through five are indicated on the cable connector. Align pin one of the cable connector with pin one on the header.

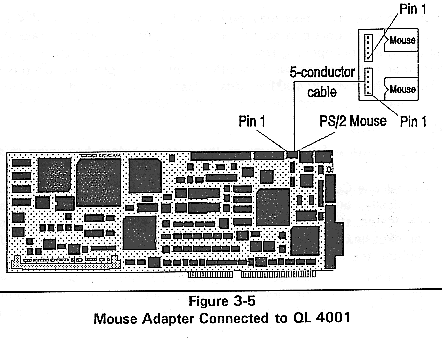

3. Connect the opposite end of the 5-conductor cable to one of the 5-pin headers on the Cubix adapter board. Refer to Figure 3-5 to locate pin one on the adapter board. Align pin one of the cable connector with pin one on the header.
4. Plug the mouse connector into the Mini-DIN 6 opposite the header that is connected to the QL 4001.
* The mouse uses IRQ 12.

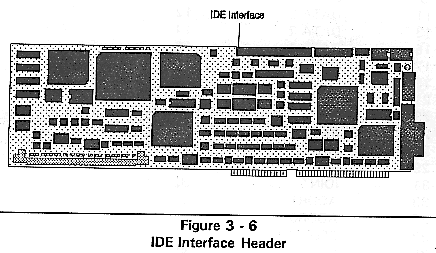

An IDE hard drive interface is included on the QL 4001 for applications that require a hard disk drive. IDE drives include an AT compatible disk controller. The IDE interface will support one or two IDE drives, connected via the internal 40-pin ribbon cable header (refer to Figure 3-6). The hard disk controller uses IRQ 14 for its interrupt.
Installing an IDE hard drive requires modifying the BIOS Setup. Refer to the BIOS Setup Chapter.
Table 3-1
IDE Interface Connector (40-Pin Header)
Pin # Description Pin #
Description
1 RESET 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW 24 GROUND
25 IOR 26 GROUND
27 N/C 28 BALE
29 N/C 30 GROUND
31 IDINT 32 N/C
33 ADDR1 34 N/C
35 ADDR0 36 ADDR2
37 SELECT 0 38 SELECT 1
39 N/C 40 N/C
Table 3 - 2
Switch SW1 Summary
Function 1 2 3 4
5 6 7
*Select Base I/O Address 200 ON ON ON ON
-- -- --
Select Base I/O Address 220 ON OFF ON ON
-- -- --
Select Base I/O Address 300 OFF ON ON ON
-- -- --
Select Base I/O Address 320 OFF OFF ON ON
-- -- --
*Monitor COM1 for DCD/DSR -- -- ON ON
ON -- --
Monitor COM 2 for DCD/DSR -- -- ON ON
OFF -- --
Monitor COM port for DSR -- -- ON ON
-- OFF --
*Monitor COM port for DCD -- -- ON ON
-- ON --
Enable Reset on Loss of DCD/DSR -- -- ON ON
-- -- ON
*Disable Reset on Loss of DCD/DSR -- -- ON ON
-- -- OFF
*Factory default
