BC 4000
Chapter 1 - Introduction
BC 4000 (80486 EISA Bus Controller)
The BC 4000 board is a 80486 computer on an EISA ATstyle, plugin board. The BC 4000 is available in both a standard 80486DX 33MHz configuration and a higher performance 80486DX/2 66 MHz configuration.
The BC 4000 computer provides all of the functionality of a standard AT PC. It includes VGA video support, two serial ports, one parallel port, keyboard and mouse support, floppy and IDE hard drive support, and up to 64MB of memory.

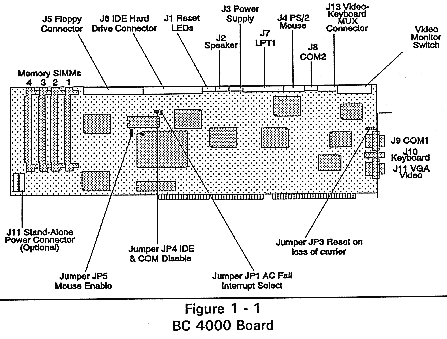

Figure 1-1, BC 4000 Board
A BC 4000 plugged into a passive EISA backplane can support up to 7 EISA controller cards. Additional ISA cards are also supported.
