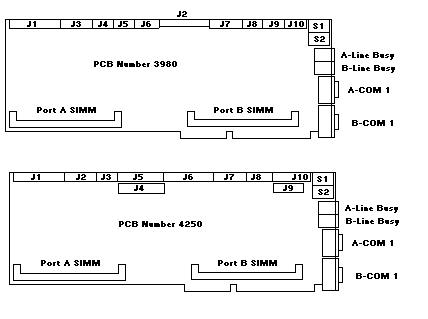

QL 3222
Quick Reference Guide
| 1 ground | 2 speed | 3 ground |
| 4 n/c | 5 ground | 6 n/c |
| 7 ground | 8 index | 9 ground |
| 10 motor on | 11 ground | 12 drive sel 2 |
| 13 ground | 14 motor sel 1 | 15 ground |
| 16 motor on 2 | 17 ground | 18 direction |
| 19 ground | 20 stop step | 21 ground |
| 22 write data | 23 ground | 24 write gate |
| 25 ground | 26 track 0 | 27 ground |
| 28 write protect | 29 ground | 30 read data |
| 31 ground | 32 side select | 33 ground |
| 34 disk change |
This header requires a optional I/O adapter from Cubix. Attempting to connect a device directly to this connector will damage the board.
| 1 DCD (data carrier detect) | 2 RD (receive data) |
| 3 TD (transmit data) | 4 DTR (data terminal ready) |
| 5 GND (ground) | 6 DSR (data set ready) |
| 7 RTS (request to send) | 8 CTS (clear to send) |
| 9 RI (ring indicator) |
Note: The COM2 header requires a optional I/O adapter from Cubix. Attempting to connect a serial device directly to this connector will damage the board.
This header is for connection to the Optional Cubix Video adapter.
| 1 Red | 2 Ground |
| 3 Green | 4 Ground |
| 5 Blue | 6 Ground |
| 7 Hsync | 8 Ground |
| 9 Vsync | 10 mse data |
| 11 Kclk | 12 mse clk |
| 13 Kdata | 14 +5 (fused) |
| 1 DCD (data carrier detect) | 2 RD (receive data) |
| 3 TD (transmit data) | 4 DTR (data terminal ready) |
| 5 GND (ground) | 6 DSR (data set ready) |
| 7 RTS (request to send) | 8 CTS (clear to send) |
| 9 RI (ring indicator) |
| 1 n/c | 2 n/c |
| 3 tip | 4 ring |
| 5 n/c | 6 n/c |
I/O Address
Each QL 3222 board has a Mode Switch (DIP switch SW2). Positions 1 and 2 select the base I/O address used by the server driver to communicate with the QL 3000 processors. The QL interface requires eight consecutive I/O ports beginning with the base I/O address.
The I/O addresses selected must not be assigned to any non QL 3000 Series devices installed in the file server or bridge hosting the QL 3000 Series boards. However, all of the QL 3000 Series boards installed in this host should have the same base I/O address.
Reset on Loss of DCD or DSR
The QL 3222 is typically connected via the COM1 port to a modem performing remote communications over a telephone line. The COM1 port monitors the state of the Data Carrier Detect (DCD) or Data Set Ready (DSR) signals coming from the modem. The QL processors can be configured to perform an automatic hardware reset if DCD or DSR is dropped.
One practical usage of this feature is to force the QL processor to reset between remote sessions. This ensures users that they are connecting to a newly initialized system. It also verifies that users are properly disconnected from the network when their session terminates (i.e., a user will not remain logged into NetWare after "hanging up" the phone).
Depending upon the system configuration, either DCD or DSR will indicate that the telephone signal connection is established and that the modem is ready. Most configurations support DCD. However, if a multiplexer is installed between the QL 3222 COM1 port and the modem, it may be necessary to monitor DSR instead. Refer to the multiplexer manufacturer's documentation for this information.
The Mode Switch (DIP switch SW2) on the QL 3222 configures this feature.
| Function | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| * Select Base I/O Address 220 | on | on | on | ||||
| Select Base I/O Address 230 | on | off | on | ||||
| Select Base I/O Address 320 | off | on | on | ||||
| Select Base I/O Address 330 | off | off | on | ||||
| * Proc B: Disable reset Option | off | off | on | ||||
| Proc B: Reset on loss of DCD | off | on | on | ||||
| Proc B: Reset on loss of DSR | on | off | on | ||||
| * Proc A: Disable reset Option | off | off | on | ||||
| Proc A: Reset on loss of DCD | off | on | on | ||||
| Proc A: Reset on loss of DSR | on | off | on |
* = Factory Setting
Each node on a Novell network must be identified by a unique address. This address consists of two parts: a network number and a node number. When the Cubix server driver is installed, it must be assigned a unique network number. Each QL 3000 Series node to be supported by the server driver must be assigned a unique node number. The node number is selected by the I.D. Switch (DIP switch SW1) on the QL 3222 board. Valid node numbers range from 2 to 249. It is recommended that the QL 3222 node numbers be assigned consecutively beginning with node number 2 as this will maximize network performance.
The QL 3222 board uses a seven position DIP switch to select its node numbers. Since the QL 3222 contains two nodes, these seven switches determine the seven high order bits of the address for each node. The low order bit for the Port A node is assumed to be 0, while it is assumed to be 1 for the Port B node. A switch is OFF when its handle is away from the board.
| # | Switch SW1 | # | Switch SW1 | # | Switch SW1 |
| 002 | 7 off | 052 | 2,4,7 off | 0A2 | 1,3,7 |
| 004 | 6 | 054 | 2,4,6 | 0A4 | 1,3,6 |
| 006 | 6,7 | 056 | 2,4,6,7 | 0A6 | 1,3,6,7 |
| 008 | 5 | 058 | 2,4,5 | 0A8 | 1,3,5 |
| 00A | 5,7 | 05A | 2,4,5,7 | 0AA | 1,3,5,7 |
| 00C | 5,6 | 05C | 2,4,5,6 | 0AC | 1,3,5,6 |
| 00E | 5,6,7 | 05E | 2,4,5,6,7 | 0AE | 1,3,5,6,7 |
| 010 | 4 | 060 | 2,3 | 0B0 | 1,3,4 |
| 012 | 4,7 | 062 | 2,3,7 | 0B2 | 1,3,4,7 |
| 014 | 4,6 | 064 | 2,3,6 | 0B4 | 1,3,4,6 |
| 016 | 4,6,7 | 066 | 2,3,6,7 | 0B6 | 1,3,4,6,7 |
| 018 | 4,5 | 068 | 2,3,5 | 0B8 | 1,3,4,5 |
| 01A | 4,5,7 | 06A | 2,3,5,7 | 0BA | 1,3,4,5,7 |
| 01C | 4,5,6 | 06C | 2,3,5,6 | 0BC | 1,3,4,5,6 |
| 01E | 4,5,6,7 | 06E | 2,3,5,6,7 | 0BE | 1,3,4,5,6,7 |
| 020 | 3 | 070 | 2,3,4 | OCO | 1,2 |
| 022 | 3,7 | 072 | 2,3,4,7 | 0C2 | 1,2,7 |
| 024 | 3,6 | 074 | 2,3,4,6 | 0C4 | 1,2,6 |
| 026 | 3,6,7 | 076 | 2,3,4,6,7 | 0C6 | 1,2,6,7 |
| 028 | 3,5 | 078 | 2,3,4,5 | 0C8 | 1,2,5 |
| 02A | 3,5,7 | 07A | 2,3,4,5,7 | 0EC | 1,2,5,7 |
| 02C | 3,5,6 | 07C | 2,3,4,5,6 | 0CC | 1,2,5,6 |
| 02E | 3,5,6,7 | 07E | 2,3,4,5,6,7 | 0CE | 1,2,5,6,7 |
| 030 | 3,4 | 080 | 1 | 0D0 | 1,2,4 |
| 032 | 3,4,7 | 082 | 1,7 | 0D2 | 1,2,4,7 |
| 034 | 3,4,6 | 084 | 1,6 | 0D4 | 1,2,4,6 |
| 036 | 3,4,6,7 | 086 | 1,6,7 | 0D6 | 1,2,4,6,7 |
| 038 | 3,4,5 | 088 | 1,5 | OD8 | 1,2,4,5 |
| 03A | 3,4,5,7 | 08A | 1,5,7 | ODA | 1,2,4,5,7 |
| 03C | 3,4,5,6 | 08C | 1,5,6 | ODC | 1,2,4,5,6 |
| 03E | 3,4,5,6,7 | 08E | 1,5,6,7 | ODE | 1,2,4,5,6,7 |
| 040 | 2 | 090 | 1,4 | 0E0 | 1,2,3 |
| 042 | 2,7 | 092 | 1,4,7 | 0E2 | 1,2,3,7 |
| 044 | 2,6 | 094 | 1,4,6 | 0E4 | 1,2,3,6 |
| 046 | 2,6,7 | 096 | 1,4,6,7 | 0E6 | 1,2,3,6,7 |
| 048 | 2,5 | 098 | 1,4,5 | OE8 | 1,2,3,5 |
| 04A | 2,5,7 | 09A | 1,4,5,7 | OEA | 1,2,3,5,7 |
| 04C | 2,5,6 | 09C | 1,4,5,6 | OEC | 1,2,3,5,6 |
| 04E | 2,5,6,7 | 09E | 1,4,5,6,7 | OEE | 1,2,3,5,6,7 |
| 050 | 2,4 | 0A0 | 1,3 | OFO | 1,2,3,4 |
The QL 3222 is equipped with a minimum of 4 MB of RAM per processor. The QL 3222 RAM resides in standard PS/2 type 72-pin SIMM devices. If double-sided SIMM's are used, they must be TSOP (thin Small Outline Package). One SIMM may be installed per processor.
| 000 - 00F | DMA 1 |
| 020 - 021 | PIC 1 |
| 040 - 043 | Timer |
| 060, 064 8742 | Keyboard controller |
| 061 | Port B |
| 070 - 071 | CMOS RAM & NMI mask register |
| 080 | Manufacturing HEX display |
| 081 - 08F | DMA Page registers |
| 0A0 - 0A1 | PIC 2 |
| 0C0 - 0DF | DMA 2 |
| 1F0 - 1F7 | IDE Hard disk drive |
| 2F8 - 2FF | COM2 |
| 300 - 302 | QL Command/Status |
| 378 - 37F | LPT1 |
| 3B0 - 3DF | VGA |
| 3F0 - 3F7 | Floppy drive (QL 4222 only) |
| 3F8 - 3FF | COM1 |
| 46E8,102 | VGA configuration ports |
| NMI | Parity/VGA |
| 0 | Timer |
| 1 | Keyboard |
| 2 | Cascaded Input for PIC 2 |
| 3 | COM 2 |
| 4 | COM 1 |
| 5 | QL 3222: Interrupt from File Server QL 4222: Not Used |
| 6 | QL 3222: Interrupt from File Server QL 4222: Floppy Disk Drive |
| 7 | LPT 1 |
| 8 | Real Time Clock |
| 9 | VGA |
| 10 | Interrupt from File Server |
| 11 | Not Used |
| 12 | PS/2 Mouse Interrupt |
| 13 | Numeric Coprocessor Interrupt |
| 14 | IDE Hard Disk Drive |
| 15 | Not Used |
QL 3222
No DMA channels are used by the QL 3222.
QL 4222
DMA channel 2 is used by the floppy disk controller on the QL 4222.
| 00000 - 9FFFF | System Conventional Memory |
| A0000 - BFFFF | VGA Video memory |
| C0000 - C7FFF | VGA Video Bios copied to shadow RAM |
| C8000 - CBFFF | Diskless download code |
| CC000 - EDFFF | Available |
| EE000 - EFFFF | 8K Dual-port-RAM |
| F0000 - FFFFF | AMI system BIOS copied to shadow RAM |
