Appendix A
Specifications
Mechanical Specifications
| Dimensions | Single: 48.75(H) x 21.75(W) x 30.75(D) (inches) 123.83(H) x 55.25(W) x 78.11(D) (cm) |
| Double: 48.75(H) x 43.50(W) x 30.75(D) (inches) 123.83(H) x 110.49(W) x 78.11(D) (cm) |
|
| Rack Space | Vertical: 30 inches (4 x 8.75 inch high racks) 76.2 cm (4 x 22.23 cm high racks) |
| Horizontal: 19 inches 48.26 cm |
|
| Cooling | Single: Three 106 CFM fans (50.03 L/S) |
| Double: Six 106 CFM fans (50.03 L/S) | |
| Operating Temperature | 0 - 40 C (32 - 104 F). It is the user's responsibility to ensure that the air intake at the bottom of the cabinet does not exceed 40 C (1040 F). |
| Operating Humidity | 0 to 85% Non-Condensing |
| Weight | Single: 150 lbs. (empty) (68 kg) |
| Double: 300 lbs. (empty) (136 kg) |

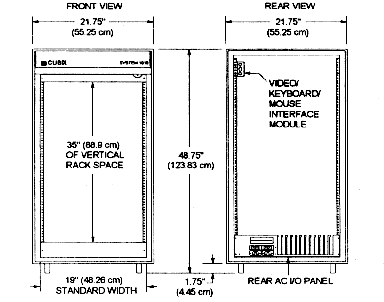

Figure A-1, Single Cabinet Front/Rear Mechnical Specifications

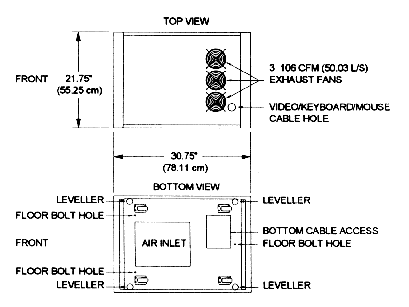

Figure A-2, Single Cabinet Top/Bottom Mechnical Specifications

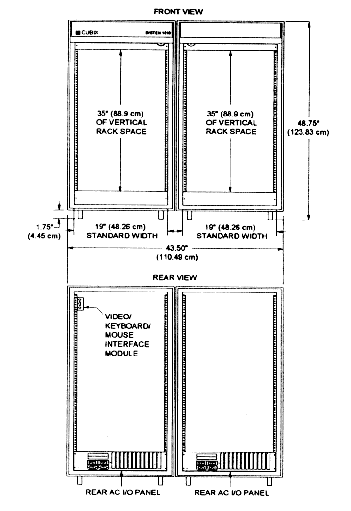

Figure A-1, Double Cabinet Mechnical Specifications
Electrical Specifications
115V AC Power Distribution
| Two independent power entry circuits | |
| Input Power Ratings | |
20 amp max |
|
| AC Power - Group 1 | |
IEC 320/C20, Panel Mount Male |
|
1 pole - 20 amp |
|
| Power Output Receptacles | |
4 NEMA 5-15R, 15A max |
|
1 NEMA 5-15R, 15A max |
|
| AC Power - Group 2 | |
IEC 320/C20, Panel Mount Male |
|
1 pole - 20 amp |
|
| Power Output Receptacles | |
4 NEMA 5-15R, 15A max |
|
1 NEMA 5-15R, 15A max |
|
| Input Power Cord Requirements | |
2 required |
|
3/14AWG SVT or SJT |
|
NEMA 5-15P |
|
IEC 320/C19 cable mounted female |
|
2 required |
|
3/12AWG SVT or SJT |
|
NEMA 5-20P |
|
IEC 320/C19 cable mounted female |
|
| Internal Power Cord Requirements for Cubix Products | |
0-8 required |
|
3/18AWG SVT or SJT minimum |
|
NEMA 5-15P |
|
IEC 320/C13 cable mounted female |
|
| Fan Assembly Input Ratings | |
115VAC |
|
0.54A |
Note 1:This 5-20 plug requires a 5-20R wall outlet and circuit rated for 20 amps. It will not insert into a regular NEMA 5-15R wall outlet.
240V AC Power Distribution
| Two independent power entry circuits | |
| Input Power Ratings | |
12 amp max |
|
| AC Power - Group 1 | |
IEC 320/C20, Panel Mount |
|
2 pole - 12 amp |
|
| Power Output Receptacles | |
4 IEC 320/C14 Panel Mount Female, 10A max |
|
1 IEC 320/C14 Panel Mount Female, 10A max |
|
| AC Power - Group 2 | |
IEC 320/C20, Panel Mount Male |
|
2 pole - 12 amp |
|
| Power Output Receptacles | |
4 IEC 320/C14 Panel Mount Female, 10A max |
|
1 IEC 320/C14 Panel Mount Female, 10A max |
|
| Input Power Cord Requirements | |
2 required |
|
3/14AWG SVT or SJT |
|
Plug must be rated at 240V/15amp (Requirements may vary by country.) |
|
IEC 320/C19 cable mounted female |
|
| Internal Power Cord Requirements for Cubix Products | |
0-8 required |
|
3/18AWG SVT or SJT minimum |
|
IEC 320/C13 Mounted Hooded Male |
|
IEC 320/C13 cable mounted female |
|
| Fan Assembly Input Ratings | |
240VAC |
|
0.28A |
|
| Video/Keyboard/Mouse Interface Module | |
1 VGA, DB DH15 connector |
|
1 PS/2, Minidin 6 connector |
|
1 PS/2, Minidin 6 connector |
|
One 25 pin DB25 connector (Direct interface to Cubix ERS/FT products.) |
This document, and all Web contents, Copyright © 1997 by Cubix Corp., Carson City, NV, USA.
