| Mitat | 75 × 500 × 350 mm (k × l × s) | ||||||
| Paino | 5 kg | ||||||
| Syöttöjännite | +17 V - +30 V | ||||||
| Tehontarve | Max. 35 W | ||||||
| Virtalähde (switch mode) | +5 V/4 A +12 V/300 mA -12 V/250 mA | ||||||
| Max. tehonotto (ABC-väylä + V24 liitännät) | +5 V/1 A +12 V/200 mA -12 V/250 mA | ||||||
| Ympäristövaatimukset |
| ||||||
| Varastointilämpötila | -40 - +55°C | ||||||
| Siirtonopeus |
|

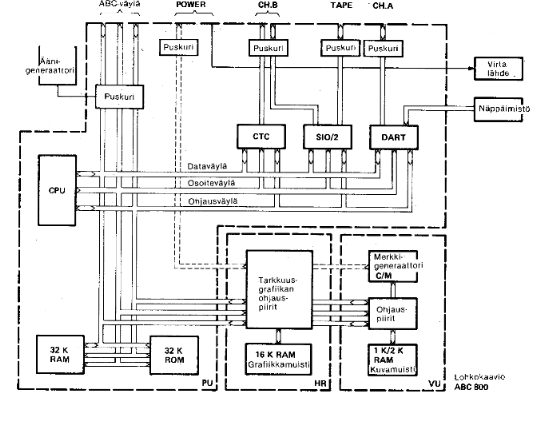

![[ABC800:n lohkokaavio]](kuvat/sivu_38.gif)
