PARTS LIST - PCB ASSEMBLY #NP-090

NOTE:	DATASETTE PARTS ARE NOT AVAILABLE FROM COMMODORE - parts list is for cross reference only.

INTERGRATED CIRCUITS IC1 AN-6562 IC2 AN-6562 IC3 74LS14 RESISTORS - All values are in ohms-1/4 W 5% unless noted otherwise. R1 10K R2 10K R3 330K R4 330K R6 2.7K R7 6.8K R8 47K R9 47K R10 330K R11 3.9K R12 47K R13 56K R14 2.7K R15 10K

RESISTORS (Continued) R16 10K R18 2.2M R18 3.3K R19 2,2K R20 1K R21 470 R22 470 R23 10K R24 220 R25 560 CAPACITORS C1 Mylar 0.1 µF C2 Ceramic 180 pF C3 Ceramic 0.002 µF C4 Ceramic 150 pF C5 Mylar .1 µF C6 Electrolytic 47 µF 10V C7 Electrolytic 47 µF 10V C8 Tantalum 0.47 µF 35V FCC Version Only

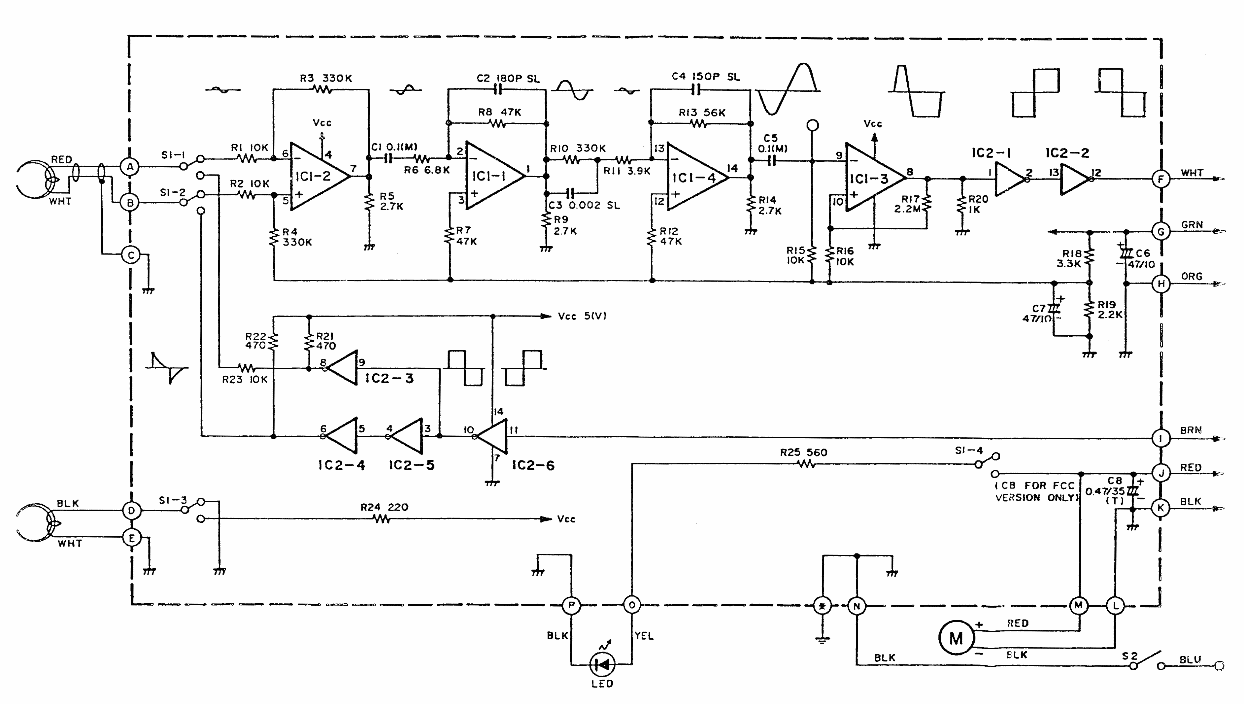

Schematic Circuit Diagram - PCB Assembly #NP-090
