PARTS LIST - PCB ASSEMBLY #320275

NOTE:	DATASETTE PARTS ARE NOT AVAILABLE FROM COMMODORE - parts list is for cross reference only.

INTERGRATED CIRCUITS IC1 LM 358 (T.I.) Sub: NA798 (Fairchild) Sub: LM258 (T.I.) IC2 LM 358 (T.I.) Sub: NA798 (Fairchild) Sub: LM 258 (T.I.) IC3 7414 Hex Inverter RESISTORS - All values are in ohms-1/4 W 5% unless noted otherwise. R1 10K R2 10K R3 330K R4 330K R5 2.7K R6 7.5K R7 47K R8 47K R9 2.7K R10 330K R11 2.9K R12 47K R13 56K R14 2.7K R15 10K

RESISTORS (Continued) R16 10K R17 2.2M R18 3.3K R19 2K R20 1K R21 470 R22 470 R23 10K R24 220 CAPACITORS C1 Ceramic .1 µF 16V C2 Ceramic 180 pF 250V (+ -) 10% C3 Ceramic .002 µF 250V (+ -) 10% C4 Ceramic .150 pF 250V (+ -) 10% C5 Ceramic .1 µF 16V C6 Electrolytic 47 µF 10V C7 Electrolytic 47 µF 10V C8 Monolythic .47 µF 50V MISC. SWI Slide Switch SEA-621

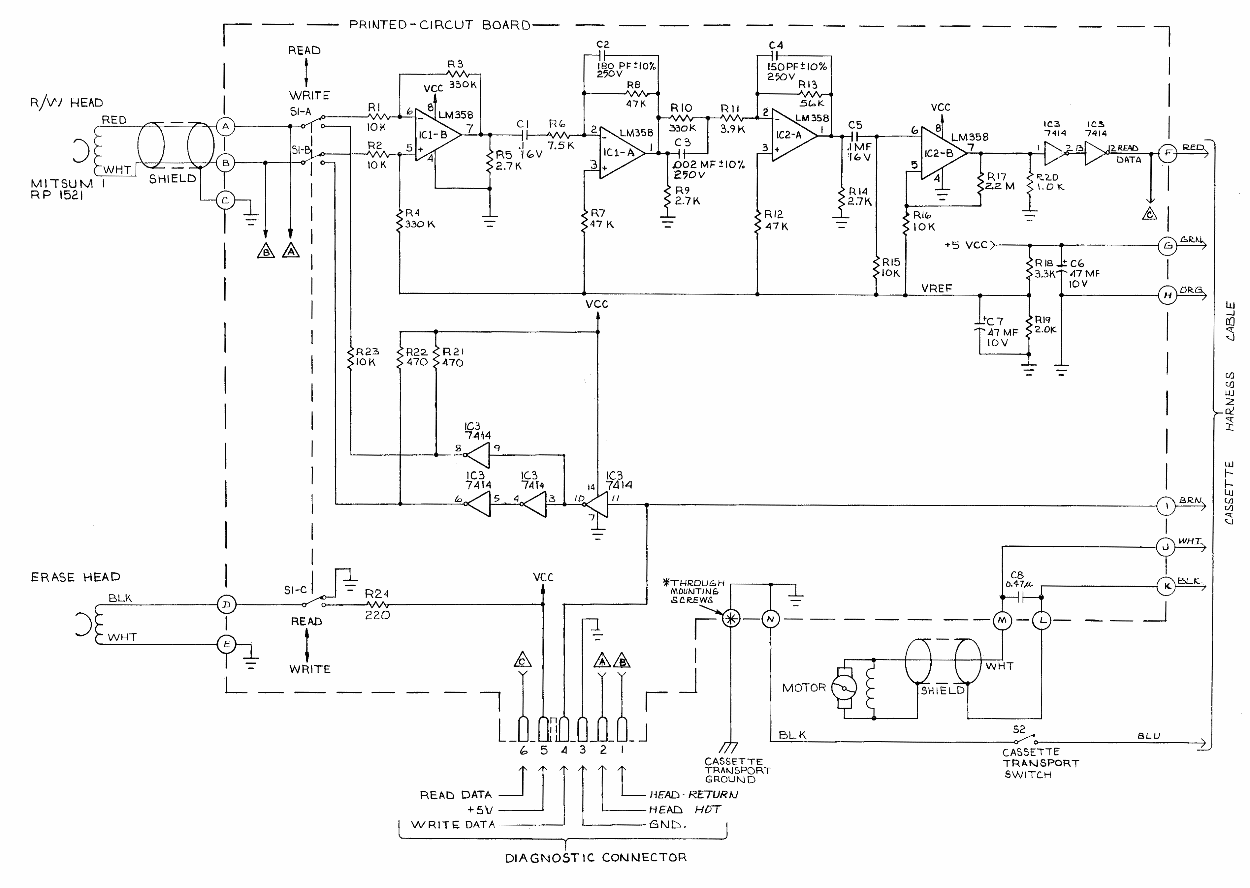

Schematic Circuit Diagram - PCB Assembly #320275
