PARTS LIST - PCB ASSEMBLY #320009

NOTE:	DATASETTE PARTS ARE NOT AVAILABLE FROM COMMODORE - parts list is for cross reference only.

INTERGRATED CIRCUITS IC1 LM 358 (T.I.) Sub: NA 798 (Fairchild) Sub: LM 258 (T.I.) TRANSISTORS Q1 NPN 2SC945 Sub:2N3904 Q2 NPN 2SC945 Sub:2N3904 Q3 NPN 2SD468 (H) Sub: 2SD471 (NEC) Q4 NPN 2SB562 (H) Sub: 2SB564 (NEC) Q5 NPN 2SC945 Sub: 2N3904 DIODES CR1 -CR4 IN4148 RESISTORS - All values are in ohms-1/4 W 5% unless noted otherwise. R1 220K R2 15K R3 270 R4 10K R6 5.6 K 1/4w 2% (sub 1 %) R7 10K 1/4w 2% (sub 1 %) R8 47 1/4w 2% (sub 1 %) R9 10K R10 10K R11 10K R12 10K R13 2M R14 4.7 K R15 1K

RESISTORS (Continued) R16 100K R18 100 R19 470 R20 10K R21 3.3K R22 100 R23 1K R24 10K R25 10K R36 15K CAPACITORS C1 Electrolytic 47 µF 10V C2 Electrolytic 10 µF 10V C3 Film .1 µF 100V C4 Ceramic .001 µF 50V C5 Ceramic .1 µF 16V C6 Ceramic .001 µF 50V C7 Ceramic .01 µF 50V C9 Ceramic 100 pF 50V C10 Ceramic 100 pF 50V C11 Ceramic .001 µF 50V C17 Ceramic .1 µF 16V MISC. SWI Slide Switch SEA-621

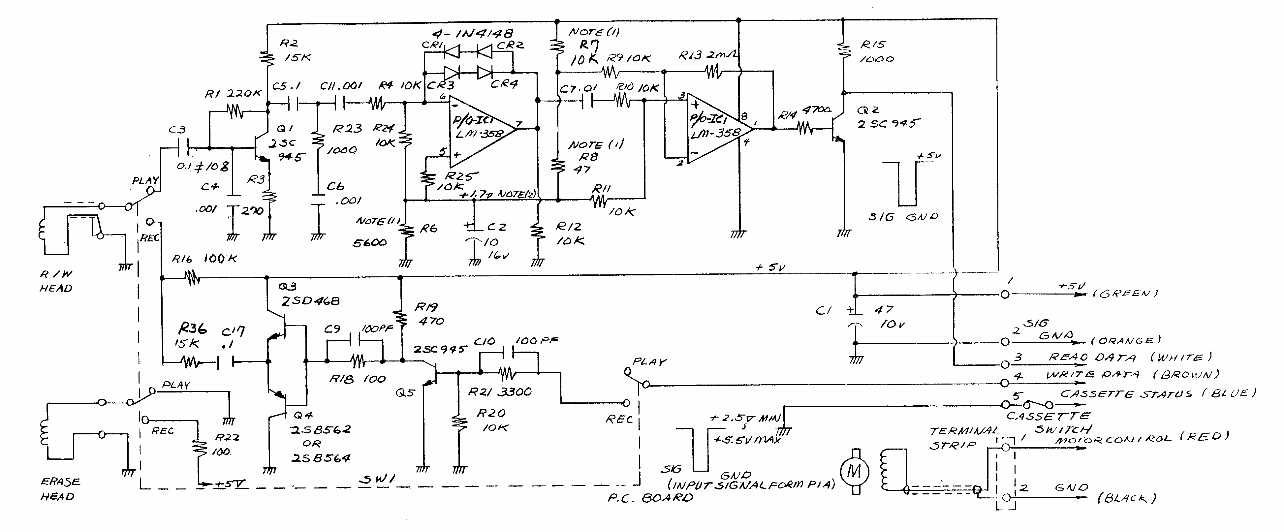

Schematic Circuit Diagram - PCB Assembly #320009
