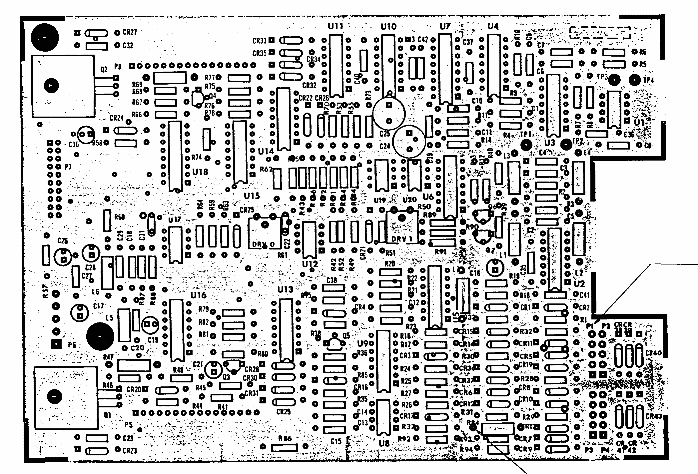

![[Board layout]](small/page_18a.gif)
|

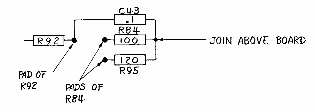

| P1 - P4 PIN CONFIGURATIONS |
|---|
| X indicates the header pin should be missing |
| 8050 | Micropolis and Micropolis Safari | P3 | 1X111 | 111X1 | P1 |
| P4 | 11111 | 11111 | P2 |
| MPI | P3 | 1X111 | 1X111 | P1 |
| P4 | 11111 | 11111 | P2 |
| 8250 | Micropolis | P3 | 11111 | 11111 | P1 |
| P4 | 11111 | 11111 | P2 |
| Micropolis Safari | P3 | 1X111 | 111X1 | P1 |
| P4 | 1X111 | 111X1 | P2 |
| MPI | P3 | 1X111 | 1X111 | P1 |
| P4 | 1X111 | 1X111 | P2 |
|
