Embedded Linux Development

A customer in the medical industry was creating a new product line, and it was to use an Intel processor running the Linux operating system to support the surrounding hardware. The operating system itself was no part of the product features: this was an embedded project.

Platform description

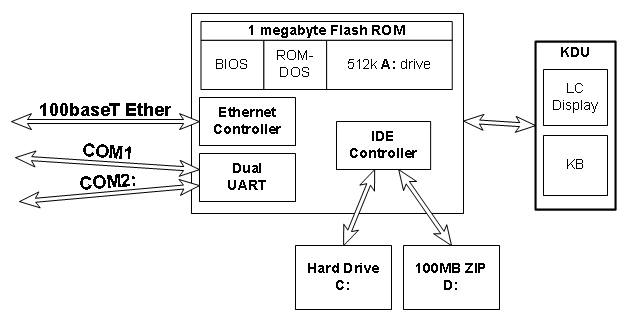

The unit is a high-resolution medical imager, and in addition to the imaging components (which were of course the main purpose of the whole unit), the components that concerned my project were:

Intel Celeron processor
256MB of RAM
PC-like motherboard (with PCI slot for expansion)
8G hard drive (IDE primary master)
100MB ZIP drive (IDE primary slave)
1 MB of flash ROM (for BIOS / ROM-DOS / A: drive)
10-button keypad
20x20 character LC Display
Serial console port
100 Mb Ethernet

At bootup, the processor booted the BIOS from flash, which in turn launched ROM-DOS (an MS-DOS clone) from the "A:" drive in flash. Once ROM-DOS was running, it ran A:\AUTOEXEC.BAT which contained the bootstrap code that launched the device software itself from the hard drive.

The KDU (Keyboard and Display Unit) contains a 10-button keypad and an LC display, and it's a separate daughterboard with its own processor and firmware. The "main" firmware has very sophisticated functions for input and output, but also has a "safe mode" which has only the bare minimum of functions required for KDU and device functionality. Even if main KDU firmware is corrupted, we can use safe mode to recover the device.

Design Goals

My task was to create a bootstrap and software installation system that would be robust even in the face of power interruptions or corruption that rendered the hard disk unbootable. It was considered a fatal error if the device became so corrupted that it was rendered RTF (Return To Factory).

The device had several sub-components whose flash could be reprogrammed, and some of them were so vital to operation that failure would always produce an RTF unit. For instance, we could reflash the KDU's "main" mode at any time and still recover, but if "safe mode" were corrupted, the unit was dead. Likewise: if the reprogramming of the A: flash filesystem failed, the unit would be disabled.

The installation system allowed the end customer to insert a ZIP disk into the device and have provisions for essentially booting from it (though not directly supported by the BIOS). The "hook" for the ZIP was very early in the process, so even a failed or unformatted hard drive would not get in the way.

Bootstrap mechanism

The bootstrap mechanism I designed was launched from the AUTOEXEC.BAT file from the A: flash filesystem. Because reprogramming the flash was "dangerous", the primary bootstrap (ABOOT.EXE) implemented "mechanism", not "policy": it knew very little about the printer or Linux or anything that we might want to change.

Instead, it probed the hardware and attempted to locate the secondary bootstrap program from the ZIP drive. If found, it launched the boot program even before the hard drive was ever considered, so this gave a "hook" to take control of an otherwise dead or unconfigured system.

If no secondary bootstrap was found on the ZIP drive (or if no media were inserted), then it attempted to launch the secondary bootstrap from the hard drive. This program was responsible for bringing the unit into full operational mode.

By using this system of delegated responsibility, it was straightforward to update any of the secondary bootstraps (on the hard drive or the ZIP disk) without risking reflashing of the A: drive. I believe that the primary bootstrap won't ever need to be changed.

Software Installation

I designed the installation system that booted from the ZIP disk, and the secondary bootstrap launched Linux from a ramdisk. This Linux system fully crafted the hard drive from start to finish:

Fully format and partition the drive, varying partition sizes according to the drive's capacity.
Mount all the hard drive partitions and untar a full image of the Linux system onto the drive
Populate the boot areas
Eject the ZIP media and reboot the system

The root tarball that was unloaded onto the newly-formatted drive was created by the software build process, and this required a substantial effort. I believed that we must use the standard RPM mechanism for software installation because this is the only way to get reliable execution of pre- and post-install scripts.

So the build process had a list of all the RPM files required for the full system, and it "installed" them all to a root-image directory. I utilized the --root=DIR facility of the rpm command to issue a chroot() to the working directory: in this way it fully believed that it was installing into a "live" system, but in fact was simply populating a directory. By applying all of the RPMs in this manner, the result was a complete image of the full Linux system. This full image was archived into a single large tarball and placed onto the installation media.

The 16 megabyte ramdisk image was likewise created by an automated process. I created a configuration file that described how the ramdisk filesystem was to be laid out, and the build script populated it from scratch. While copying system binaries, it automatically located and installed the required shared libraries, and at no time was a manual filesystem-crafting process employed. It was vital that the process be reproduceable.

This ramdisk filesystem contained everything needed for installation, maintenance, and general debugging of the printer. It included the usual editors, traditional Linux utilities, and even a DHCP client and secure shell server. I created a maintenance disk that booted hands-off and allowed for remote management via secure shell.

The full Linux installation process took about ten minutes, and was entirely unintended. The customer has reported that this entire mechanism has been utterly trouble free.
